8 pin Female Contacts AISG RET Cable To 6 Pins Crimp Terminal

RET Cables AISG 8 Pin Female Contacts To 6 Pins Crimp Terminal

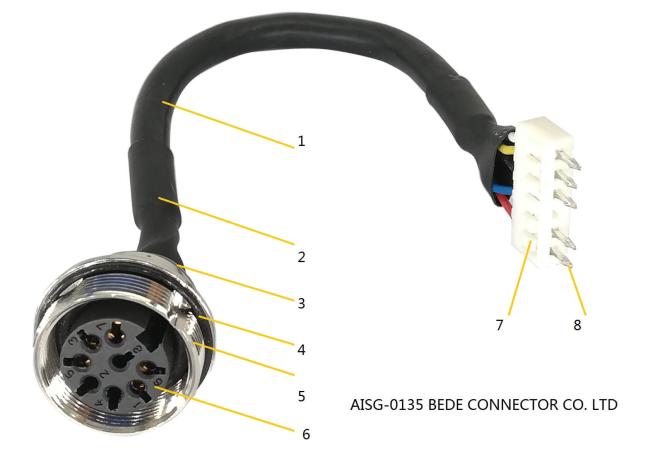

Structure

1. cable, length 80 and 105mm in stock and customization is available. the cable's out diameter is 6.8mm, 5 cores, jacket with shielding layer which made of aluminum-magnesium alloy, and the coverage rate is greater than 85%

2. Heat shrink tube, black color or customized

3. Sealant, made of epoxy resin, for waterproofing

4. O-ring, Rubber, used for waterproofing

5.Shell of AISG female connector, copper materials with nickel plated

6. Insulator of AISG female connector, PBT materials

7. Crimp terminal, customization as needed is welcome

8. Contact pins of crimp terminal, brass with silver pleted

Pin location

     Female pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a. The female pins 2, 4 and 8 are not in
use for AISG applications, but it must be ensured that fully loaded male connectors according DIN EN 61076-2-
106:2012-04 variant 08-a are pluggable.

Size

    size of the female connetor according AISG C485 4.1.1.3  style A3
