AISG Inner RET Control Cables Male To Female And SCN2.54-6P Plug IP67

AISG Inner Cables RET Control Cables Male To Female And SCN2.54-6P Plug IP67

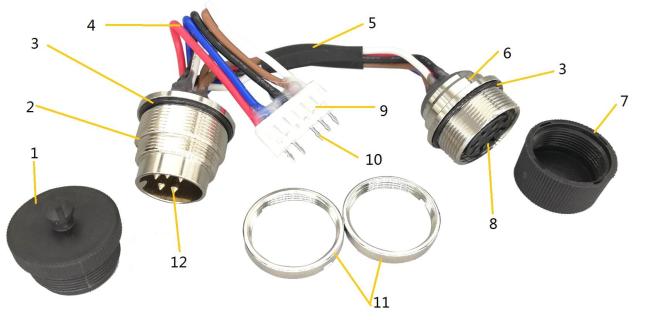

Structure

1. protective cap of female connetors, black color

2. male connector, AISG C485  A1 style, copper with nickel plated

3. o-ring, rubber material, for waterproofing

4. wires, gauge 22AWG, length 80mm in stock, customization is available

5. heat shrink tube, EVA material, color and size can be customized

6. female connector, AISG C485 A3 style, copper with nickel plated

7. protective cap of male connetors, black color

8. insulator, PBT materials, black color, pin layout is based on DIN EN 61076-2-106:2012-04 variant 08-a

9. SCN2.54-6P plug, this end can be customized

10. contact pins, brass with silver plated

11. panel mounting nuts for male connector and female connector, stainless steel material

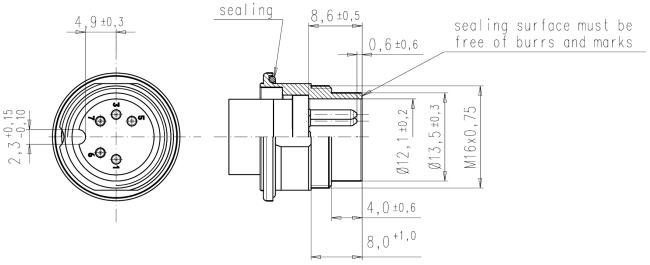

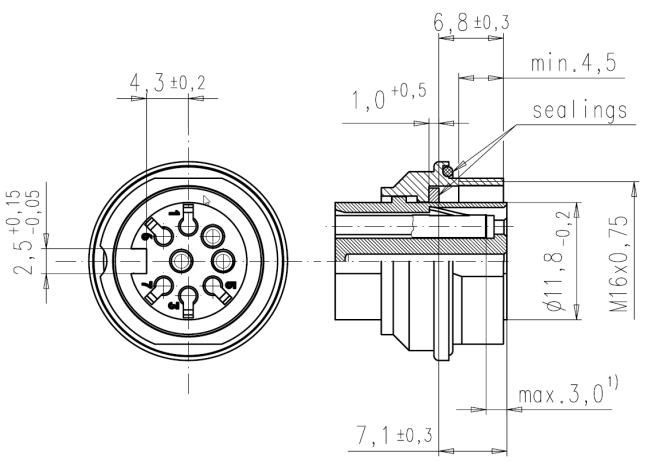

Interface dimensions of male and female connector
