Zinc Alloy GX16 Aviation Plug 2 Pin 3 4 5 Pins Rear Mounting Style

GX16 Aviation Connector Panel Mounting Sets Rear Mounting Style 2 3 4 5 Pins

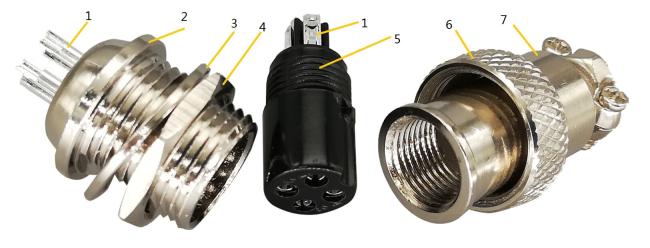

Product structure

1. Contact pins, brass material with silver plated,

2. Male connector, shell material is nickel plated zinc alloy, rear mounting style

3&4, Nut and spring washer for panel mounting, stainless steel material

5. Insulators,female connector, bakelite material, balck color, insulation resistance greater than 1500 MΩ

6. Nut for fixing male and female connector after connection

5. shell of female connector and cable, Zinc alloy materials with zinc plated

Electrical data

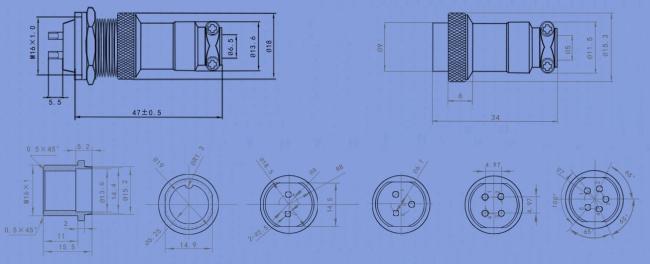

Size and pins location

 Product size and pins location as following picture, customization is welcome, please feel free to contact us.

All familier

    About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Rear mounting model

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting
