Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Price Negotiable

Price: negotiation

MOQ: 150 sets

Delivery Time: within 5 days after payment

Brand: BEDE

Product Description

GX16 Aviation Connector Black Color Panel Mounting Style Welding Type 2~10 Pin

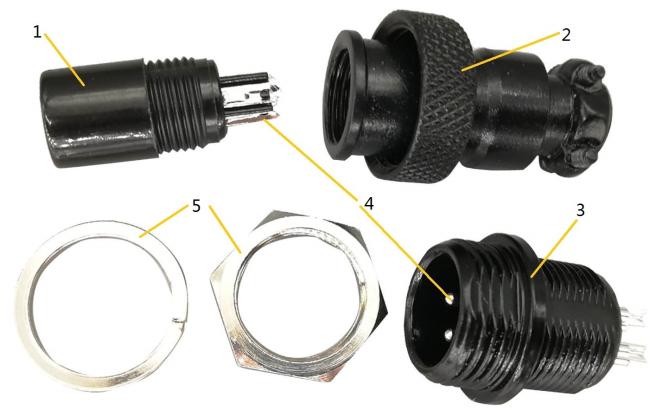

Structure

Insulator, bakelite material, black color, insulation resistance greater than 1500 MΩ
nut, used to lock the male and female after connection
male connector, mountiing in the panel, zinc alloy materials with Oxidation treatment
contact pins, brass material with silver plated
nut and spring washer, used for mounting the male end, stainless steel materials

Electrical data

pins	2 pin 3pin	4pin	5pin	6 7 8 9 10 pin
rated current	7A	5A	5A	4A
working voltage	200V
Contact resistance	3mΩ max
Insulation resistance	1500MΩ
Withstand voltage	1500V
Contact hole size Φmm	2.45	2.45	2.00	1.15

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
