M21 Aviation Connector Panel Mounting Connector IP68 Waterproof 2 3 4 5 5C 7 9 12 Pin

Description

1. Cable to cable docking connetors and cable to panle connectors, male and female sets,

2. shells material is PA66, flame retardant UL94V-0

3. insulator meterial is PBT, temperature resistance up to 260°C and high insulation resistance

4. pins: 2 3 4 5 5C 7 9 12

5. suitable cable diameter: Φ5~7mm or 7~12mm,

6. applicable temperatrue: -25~+85℃

7. waterproof: IP68

8. Withstand voltage:2 3 4 5 5C 7 9 pin 1500V,   12 pin  1200V

9. factory outlet, welcome to customize,not retail

Notice:

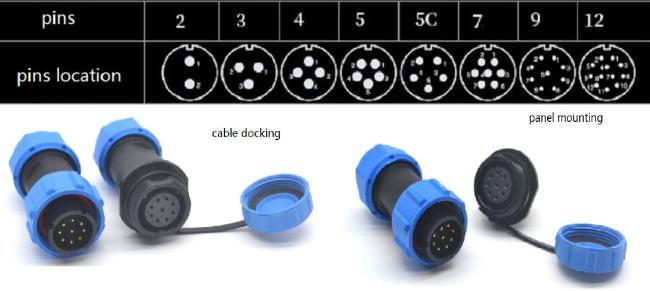

1.pins location as following pictrue, there are 2 styles of 5 pin, please choose the one you need and let us know

2.both panel mounting and cable docking moudels in stock

Electrical data
