Automotive AC Hose Crimping Machine with 500T Crimping Force, Automatic Crimping Function, and Customized Die Sets

Price Negotiable

Price: Contact Us

MOQ: 1 Set

Delivery Time: 2 - 7 Working Days

Brand: MENSION

Product Description

Automotive AC Hose Crimp Fittings Hose Crimping Machine Automatic Pipe Crimper

AUTOMOTIVE HOSE CRIMPING MACHINE MS-51

DESCRIPTION

MS-51 pressure hose pressing machine is suitable for one-off, vehicle maintenance jobs and mass hose assembly producing industry. It features reasonable button positioning for convenient operation and automatic crimping function to improve production efficiency.

MAIN FEATURES

Simple and precise crimping for hose assembly
Customized die sets can meet different demands
Pedal switch enables holding big hoses with hands

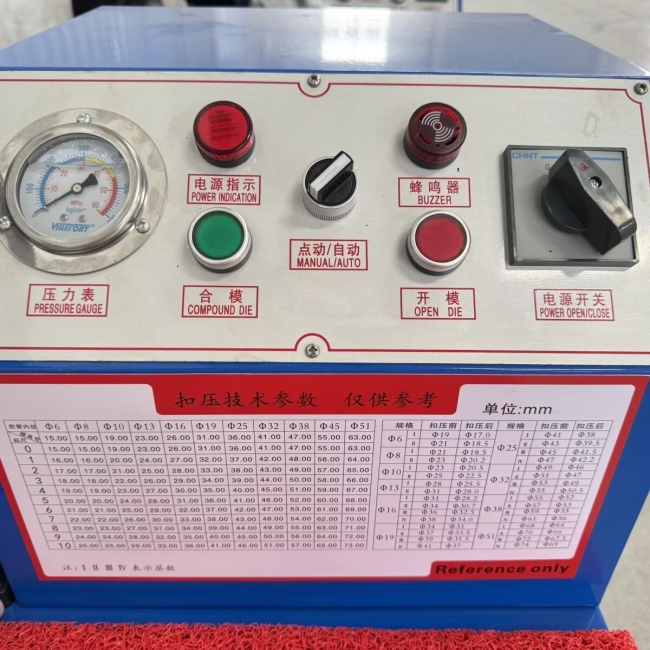

Easy changing between automatic and manual mode

TECHNICAL DATA

Model	MS-51 Pressure Hose Crimper
Crimping Range	14 - 87 (mm)
Crimping Force	500 (T)
Hose Size	1/4 - 2 (inch)
Max. Opening	30 (mm)
Die Sets	10
Die Set Type	51
System Pressure	31.5 (Mpa)

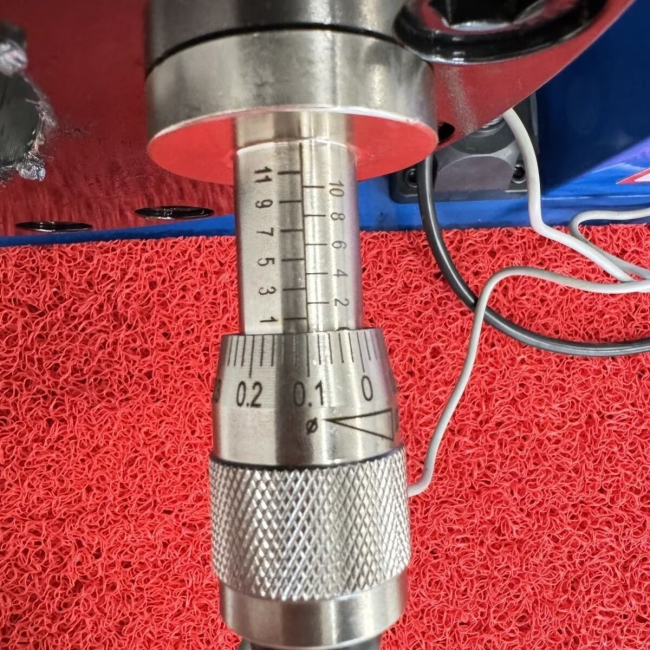

Accuracy	0.05 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW)
Length	670 (mm)
Width	430 (mm)
Height	820 (mm)
Weight	260 (KG)

51 CRIMPING MACHINE DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8mm	35
8*	8 - 10mm	35
10*	10 - 12mm	35
12*	12 - 15mm	35
15	15 - 19mm	60
19	19 - 23mm	60
23	23 - 26mm	60
26	26 - 31mm	60
31	31 - 36mm	70
36	36 - 41mm	70
41	41 - 47mm	70
47	47 - 55mm	80
55	55 - 63mm	80
63	63 - 69mm	80
69*	69 - 76mm	100
