Product Description

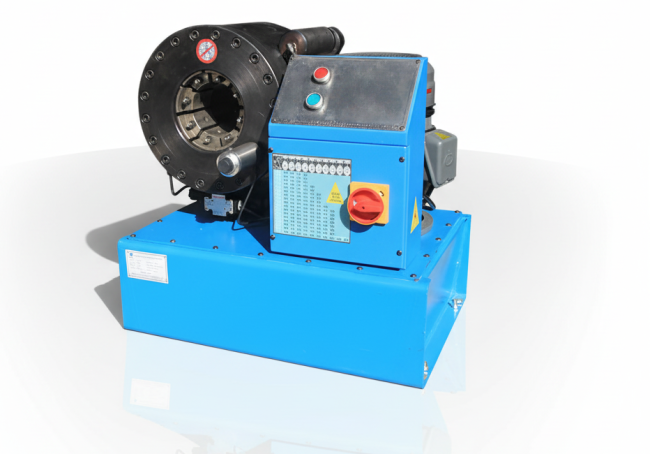

Manual Hose Crimping Machine - MS-E150
Product Overview
The MS-E150 is a compact hydraulic hose crimping machine designed for high-pressure hose assembly production. With a maximum crimping force of 7800KN, it's ideal for machine shops, repair workshops, and single-piece production environments.
Key Features
- Forged one-piece crimping head prevents oil leakage
- Compact structure with lightweight design
- Two bevel master die with substantial crimping force
- High hardness molds for extended service life
Technical Specifications
| Model | MS-E150 Manual Crimping Machine |
| Crimping Range | 14 - 127 mm |
| Crimping Force | 780 T |
| Hose Size | 1/4 - 3 inch |
| Max. Opening | 35 mm |
| Die Sets | 15 |
| Die Set Type | 150 |
| System Pressure | 31.5 Mpa |
| Accuracy | 0.01 mm |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L×W×H) | 650 × 550 × 650 mm |
| Weight | 250 KG |
150 Crimper Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 55 |
| 8* | 8 - 10mm | 55 |
| 10* | 10 - 12mm | 55 |
| 12* | 12 - 14mm | 55 |
| 14 | 14 - 16mm | 55 |
| 16 | 16 - 19mm | 55 |
| 19 | 19 - 22mm | 55 |
| 22 | 22 - 26mm | 70 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 34mm | 70 |
| 34 | 34 - 39mm | 75 |
| 39 | 39 - 45mm | 75 |
| 45 | 45 - 51mm | 90 |
| 51 | 51 - 57mm | 90 |
| 57 | 57 - 63mm | 100 |
| 63 | 63 - 69mm | 110 |
| 69 | 69 - 74mm | 110 |
| 74 | 74 - 78mm | 110 |
| 78 | 78 - 87mm | 110 |
Additional Options & Notes
- Customized die sets available in different sizes and shapes
- Special voltage options: 110V, 208V, 240V, 415V
- Foot pedal accessory available for hands-free operation
- * denotes non-standard die sets
Premium Components
Hydraulic Cylinder with Chrome40 - One-piece forged design prevents oil leakage and reduces maintenance costs
Optimized Valve System - Minimizes oil transfer time for faster crimping and opening cycles, improving productivity
High-Quality Die Sets - 15 die sets with 59-63HRC hardness for extended service life
Precision Micrometer Control - 0.01mm accuracy for precise crimping diameter control without scale adjustments
