DX68 Hydraulic Crimper High Precision 500T Crimping Force Workshop Service Hose Crimping Machine
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Crimper Machine DX68 Hose Crimping Machine Finn Power P32 Manual
Workshop Service Hose Crimper Machine DX68 High Precision For Industrial Hose Tubes

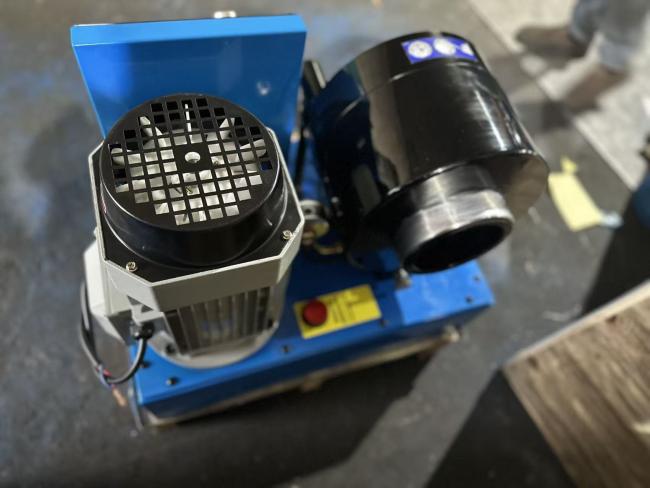

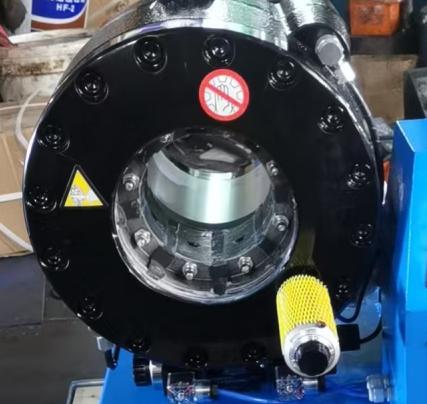

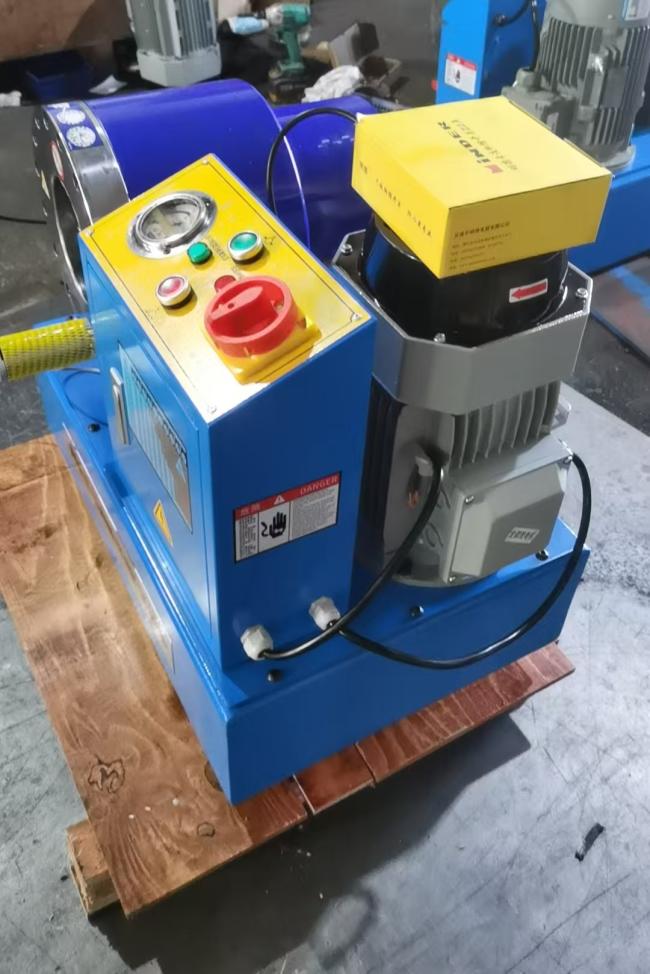

DX68 Hose Crimping Machine

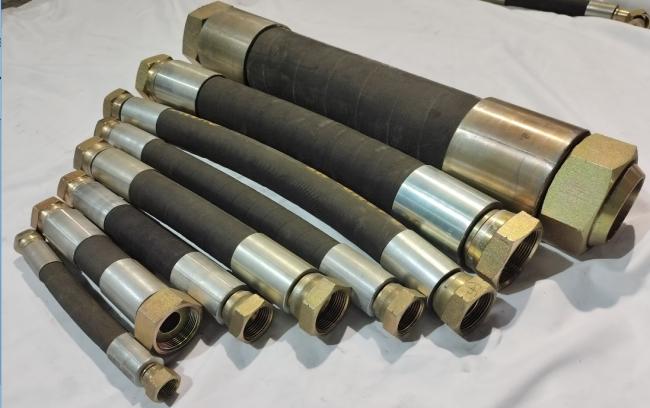

DX68 hose crimper is a table top crimping machine for hydraulic and industrial hose and tubes. It is with powerful hydraulic unit, which is able to let the machine press high pressure hose up to 2'' 4SH.
Main Features
- Energy saving
- Ergonomic design
- Pressure crimping
- Low noise level
- Suitable for tough field
Technical Data
| Model | DX-51 Brake Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 500 (T) |
| Hose Size | 1/4 - 2 (inch) (4SH) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 68 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3 (KW) |
| Length | 670 (mm) |
| Width | 430 (mm) |
| Height | 820 (mm) |
| Weight | 260 (KG) |
68 Series Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 15mm | 35 |
| 15 | 15 - 19mm | 60 |
| 19 | 19 - 23mm | 60 |
| 23 | 23 - 26mm | 60 |
| 26 | 26 - 31mm | 60 |
| 31 | 31 - 36mm | 70 |
| 36 | 36 - 41mm | 70 |
| 41 | 41 - 47mm | 70 |
| 47 | 47 - 55mm | 80 |
| 55 | 55 - 63mm | 80 |
| 63 | 63 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
Note
- * for non standard die sets
- Customized die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
Optional
- Quick Change Tool
- Quick Change Die Set Rack
- Mechanical back stop device
