Hydraulic Cable Crimper For Sale Pressing Machine DX69 Hydraulic Pipe Repairing Machine

Price Negotiable

Price: Contact Us

MOQ: 1 Set

Delivery Time: 2 - 7 Working Days

Brand: MENSION

Product Description

For Workshop Hydraulic Cable Pressing Machine DX69 With Crimping Range 6 - 51mm

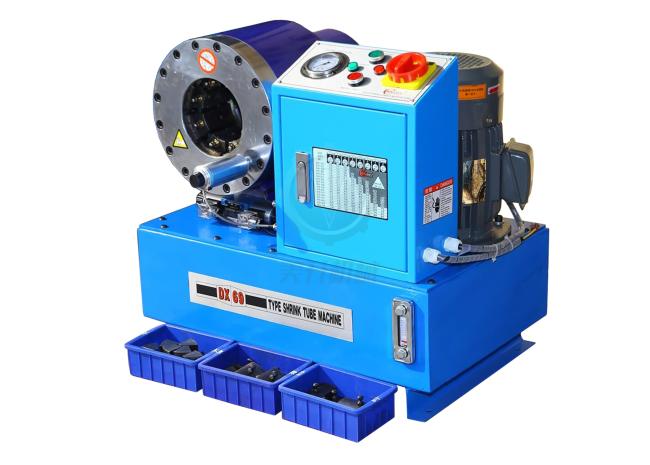

HYDRAULIC CABLE CRIMPING PRESS MACHINE MS - DX69

DESCRIPTION

MS-DX69 hydraulic hose crimper machine is a advanced mechanical control model, it is equiped with famous spares which will enable the machine work with high stability and accuracy. The cylinder can close and open with quick speed, to make the crimper a high efficiency and multifucntional for many material pressing and jointing.

FEATURES

1. High technology control system;

2. Good quality spare parts with famous brand;

3. Unique and advanced hydraulic cylinder;

4. Die sets for crimping with high hardness.

TECHNICAL DATA

Model	DX - 69 Crimper Machine
Crimping Range	14 - 87 (mm)
Crimping Force	640 (T)
Hose Size	1/4 - 2 (inch) 4 Layers
Max. Opening	25 (mm)
Die Sets	10
Die Set Type	69
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3 (KW) / 4 (KW)
Length	630 (mm)
Width	450 (mm)
Height	560 (mm)
Weight	190 (KG)

69 CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	35
8*	8 - 10 mm	35
10*	10 - 12 mm	35
12*	12 - 14 mm	35
14	14 - 16 mm	60
16	16 - 20 mm	60
20	20 - 22 mm	60
22	22 - 26 mm	60
26	26 - 30 mm	70
30	30 - 38 mm	70
38	38 - 46 mm	70
46	46 - 54 mm	80
54	54 - 64 mm	80
64	64 - 69 mm	80
69*	69 - 76 mm	100
