650T Crimping Force Hydraulic Hose Crimper with 10 Die Sets for 1/4 - 2inch Hose Size
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Two Inches P32 Crimping Machine Hydraulic Hose Crimper Gates Portable Crimper
HYDRAULIC HIGH PRESSURE HOSE CRIMPER MACHINE MS-E38
Product Overview

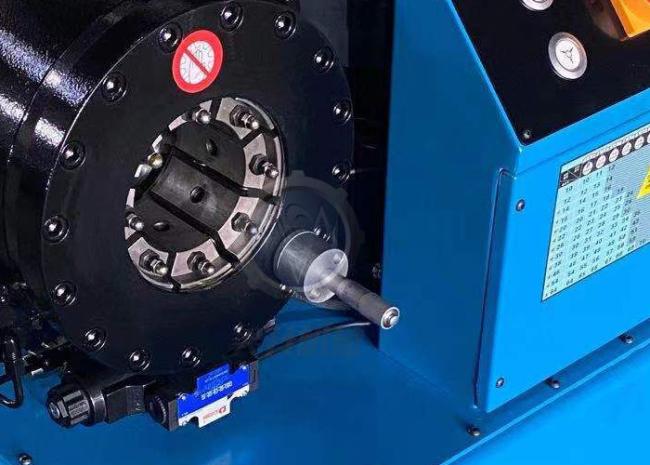

MS-E38 rubber hose crimping machine is the ideal choice for hydraulic and industrial machinery repair workshop. It features substantial crimping force, capable of pressing hose fittings from 1/4 inch to 2 inch with high tensile steel wire 4 layers braided. The MS-E38 hose crimper utilizes an MS control model, designed for easy user operation and learning. This hydraulic crimping machine comes with 10 die sets as standard equipment.
Key Advantages
- Suitable for rubber hose from 1/4" to 2" with 4 layers
- Crimping die sets feature high hardness for long service life
- Ergonomic machine design for easy and convenient operation
- Fast opening and closing mechanism to improve crimping efficiency
Technical Specifications
| Model | MS-E38 Pipe Pressing Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
E38 Hydraulic Crimping Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6 * | 6 ... 8mm | 55mm |
| 8 * | 8 ... 10mm | 55mm |
| 10 * | 10 ... 12mm | 55mm |
| 12 * | 12 ... 14mm | 55mm |
| 14 | 14 ... 16mm | 60mm |
| 16 | 16 ... 20mm | 60mm |
| 20 | 20 ... 22mm | 60mm |
| 22 | 22 ... 26mm | 60mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 38mm | 70mm |
| 38 | 38 ... 46mm | 70mm |
| 46 | 46 ... 54mm | 80mm |
| 54 | 54 ... 64mm | 80mm |
| 64 | 64 ... 69mm | 80mm |
| 69 * | 69 ... 74mm | 110mm |
| 74 * | 74 ... 78mm | 110mm |
| 78 * | 78 ... 87mm | 110mm |
Important Notes
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Special voltage options available: 110V, 208V, 240V, 415V
• Customized die sets are available upon request
• Special voltage options available: 110V, 208V, 240V, 415V
Optional Features
- UC control system
- Position limit device
Certifications
E38 hose crimping machine is manufactured with CE certificate compliance.
ISO 9001 Quality Certificate for Hose Crimping Machine from Mension
