Product Description

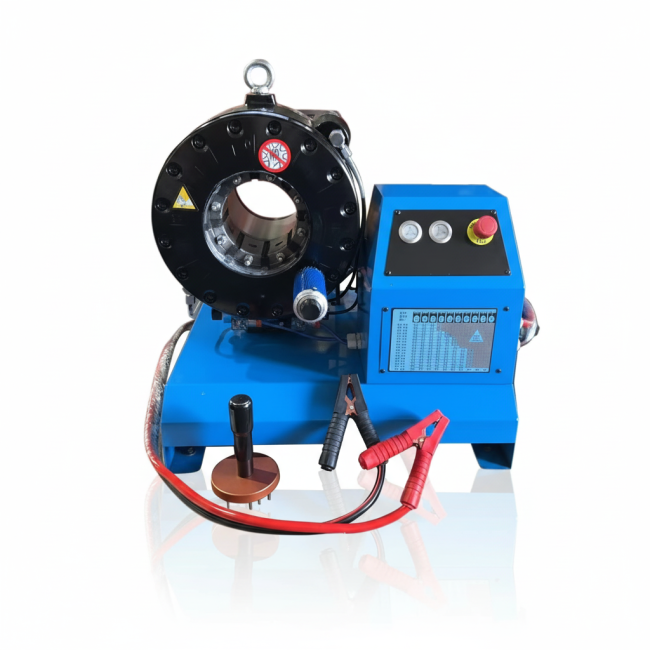

12V/24V Hydraulic Hose Crimper P32CS
Product Overview
The MS-P32CS portadle hydraulic hose crimping machine features a simple design with compact structure, lightweight construction, and easy operation. Ideal for on-site crimping applications in mobile vans or vehicles, it includes a special slide device for enhanced mobility.
Remarkably, P32cs is still a high-pressure hose crimping machine, it can offer the powerful crimping force to crimp up to 2 inches 2 layers hoses. Besides, the dies rack and quick change tool still can be optional.
Key Advantages
owered by 12v and 24V battery, with a crimping force of up to 2800 kN
Stable and reliable crimping performance suitable for high-pressure hydraulic applications
Ideal for repair shops and industrial maintenance teams
Capable of crimping hydraulic hoses up to 2 inches (2 layers)
Supports both 12V and 24V power supply
Compact and ergonomic design
Perfect for on-site mobile service
Fast crimping and retracting operation
Technical Specifications
| Model | MS-P32CS Pipe Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 280 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 24 (V) |
| Motor Power | 2.2 (KW) |
| Length | 630 (mm) |
| Width | 540 (mm) |
| Height | 420 (mm) |
| Weight | 150 (KG) |
P32 Hydraulic Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8mm | 55 |
| 8* | 8 ... 10mm | 55 |
| 10* | 10 ... 12mm | 55 |
| 12* | 12 ... 14mm | 55 |
| 14 | 14 ... 16mm | 55 |
| 16 | 16 ... 19mm | 55 |
| 19 | 19 ... 22mm | 55 |
| 22 | 22 ... 26mm | 70 |
| 26 | 26 ... 30mm | 70 |
| 30 | 30 ... 34mm | 70 |
| 34 | 34 ... 39mm | 75 |
| 39 | 39 ... 45mm | 75 |
| 45 | 45 ... 51mm | 90 |
| 51 | 51 ... 57mm | 90 |
| 57 | 57 ... 63mm | 100 |
| 63 | 63 ... 69mm | 110 |
| 69 | 69 ... 76mm | 110 |
| 74* | 74 ... 80mm | 110 |
| 78* | 78 ... 87mm | 110 |
* Non-standard die sets. Customized die sets with different shapes and sizes are available. 12V voltage option is available.
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- Car Installing Unit
Premium Features
Forged Cylinder
One-piece structure prevents oil leakage problems, reduces oil transfer time, and increases productivity.
High-Precision Micrometer
P32CS features high-accuracy dial with 0.01mm precision.
Die Set Reference Sheet
Comprehensive guide for selecting proper die sets for different crimping sizes.
Premium Raw Materials
Constructed with 45 Steel, Chrome40, and Cr12Mov Steel for crimping cylinder and die sets.
High-Performance Hydraulic Oil Pump
Large hydraulic pump with high flow and power, featuring famous Italian brand components.
Germany REXROTH Hydraulic Valve
Premium hydraulic valve system from Germany REXROTH ensures reliability with low maintenance costs.
Versatile Applications
The P32CS crimping machine is designed for use in mobile vans with 12V/24V power supply. Suitable for high-pressure oil rubber hose assembly crimping, low-pressure water or air hose pressing, steel tube swaging, wire rope pressing, lock device manufacturing, and more.
