Product Description

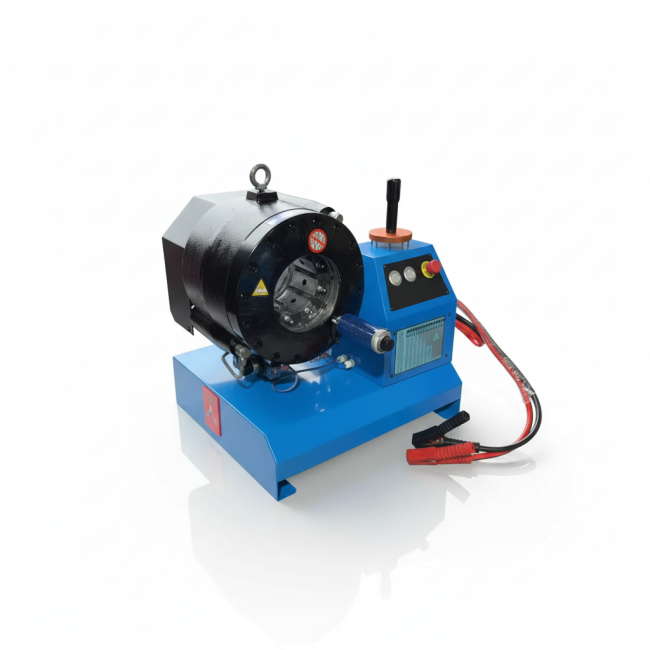

MS-P32CS Portable Hydraulic Hose Crimping Machine
12V/24V Hydraulic Hose Crimper P32CS featuring compact design and powerful crimping performance for on-site applications.
Product Overview
The MS-P32CS portable hydraulic hose crimping machine features a simple design with compact structure, lightweight construction, and easy operation. Ideal for on-site crimping applications in mobile vans or vehicles, it includes a special slide device for enhanced mobility.
Remarkably, P32CS is still a high-pressure hose crimping machine that can offer powerful crimping force to crimp up to 2 inches 2-layer hoses. Optional dies rack and quick change tool are available.
Key Advantages
- Powered by 12V and 24V battery, with crimping force up to 2800 kN
- Stable and reliable crimping performance for high-pressure hydraulic applications
- Ideal for repair shops and industrial maintenance teams
- Capable of crimping hydraulic hoses up to 2 inches (2 layers)
- Supports both 12V and 24V power supply
- Compact and ergonomic design
- Perfect for on-site mobile service
- Fast crimping and retracting operation
Technical Specifications
| Model | MS-P32CS Pipe Crimping Machine |
|---|---|
| Crimping Range | 10 - 76 (mm) |
| Crimping Force | 280 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 33 (mm) |
| Die Sets | 13 |
| Die Set Type | MS |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 24 (V) |
| Motor Power | 2.2 (KW) |
| Length | 630 (mm) |
| Width | 540 (mm) |
| Height | 420 (mm) |
| Weight | 150 (KG) |
P32 Hydraulic Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 ... 8mm | 55 |
| 8* | 8 ... 10mm | 55 |
| 10* | 10 ... 12mm | 55 |
| 12* | 12 ... 14mm | 55 |
| 14 | 14 ... 16mm | 55 |
| 16 | 16 ... 19mm | 55 |
| 19 | 19 ... 22mm | 55 |
| 22 | 22 ... 26mm | 70 |
| 26 | 26 ... 30mm | 70 |
| 30 | 30 ... 34mm | 70 |
| 34 | 34 ... 39mm | 75 |
| 39 | 39 ... 45mm | 75 |
| 45 | 45 ... 51mm | 90 |
| 51 | 51 ... 57mm | 90 |
| 57 | 57 ... 63mm | 100 |
| 63 | 63 ... 69mm | 110 |
| 69 | 69 ... 76mm | 110 |
* Non-standard die sets.
Standard dies included are from #14 to #69.
Customized die sets with different shapes and sizes are available. 12V voltage option is available.Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- Car Installing Unit
Premium Features
Forged Cylinder - One-piece structure prevents oil leakage problems, reduces oil transfer time, and increases productivity.
High-Precision Micrometer - P32CS features high-accuracy dial with 0.01mm precision.
Die Set Reference Sheet - Comprehensive guide for selecting proper die sets for different crimping sizes.
Quick and convenient operation panel
Premium Raw Materials - Constructed with 45 Steel, Chrome40, and Cr12Mov Steel for crimping cylinder and die sets.
High-Performance Hydraulic Oil Pump - Large hydraulic pump with high flow and power, featuring famous Italian brand components.
Germany REXROTH Hydraulic Valve - Premium hydraulic valve system from Germany REXROTH ensures reliability with low maintenance costs.
Versatile Applications
The P32CS crimping machine is designed for use in mobile vans with 12V/24V power supply. Suitable for high-pressure oil rubber hose assembly crimping, low-pressure water or air hose pressing, steel tube swaging, wire rope pressing, lock device manufacturing, and more.
