Vehicle-mounted mobile P32CS Hydraulic Hose Crimping Machine 12V/24V Battery Powered with 1/4''-2 1/2'' Crimping Range and 280T Crimping Force
Price:
Price Negotiable
MOQ:
1 Set
Delivery Time:
2 Days
Brand:
MENSION
Product Description
Electric P32CS Hydraulic Hose Crimping Machine
The P32CS electric hydraulic hose crimping machine is designed for efficient and precise hose assembly in industrial, mobile maintenance, and field service scenarios. It offers 12V-24V battery power or standard power supply. The machine uses a robust and durable thick-gauge steel structure and high-quality hydraulic components to provide stable and reliable crimping results, meeting stringent industrial sealing and pressure resistance standards. It effectively prevents joint loosening, leakage, and premature hose failure, thus achieving durable and safe hose connections.
Key Features
- Wide crimping capability; can crimp 1/4 inch–2 inch hoses
- Supports 12V/24V DC power (battery powered) for van/truck mobile operation.
- All-weather performance suitable for indoor workshops and outdoor field operations
- CE certified complies with EU safety and quality standards for global market access
- Compact design, suitable for small spaces
- Optional mold racks and quick-change tools are available to meet more personalized needs.
- Design: Robust, reliable and easy-to-use crimping tool
Technical Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 Years |
| Dimension | 630×540×420mm |
| Mold Set | 13 |
| Type | Electric |
| Voltage | 12V/24V 220V/380V AC (optional) |
| Crimping Cycle Time | 8s |
| Crimping Accuracy | ±0.01mm |
| Crimping Range | 1/4" - 2 1/2" |
| Crimping Force | 280T |
| Power | 2.5KW |
Industrial Applications
This hydraulic hose crimping machine is ideal for applications requiring precise crimp dimensions and high quality standards. With high precision and repeatability, it ensures exact crimp force and consistent results. Suitable for automotive, marine, and various hydraulic applications.

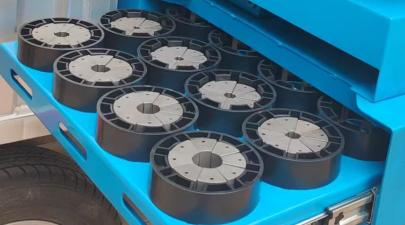

P32CS Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 14 | 14 ... 16mm | 55mm |
| 16 | 16 ... 19mm | 55mm |
| 19 | 19 ... 22mm | 55mm |
| 22 | 22 ... 26mm | 70mm |
| 26 | 26 ... 30mm | 70mm |
| 30 | 30 ... 34mm | 70mm |
| 34 | 34 ... 39mm | 75mm |
| 39 | 39 ... 45mm | 75mm |
| 45 | 45 ... 51mm | 90mm |
| 51 | 51 ... 57mm | 90mm |
| 57 | 57 ... 63mm | 100mm |
| 63 | 63 ... 69mm | 110mm |
| 69 | 69 ... 74mm | 110mm |
Customization Options
| Specification | Details |
|---|---|
| Brand Name | MENSION |
| Model Number | P32CS |
| Place of Origin | China |
| Certification | CE |
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Packaging Details | Plywood Case |
| Delivery Time | 2 Days |
| Payment Terms | TT In Advance |
Our hydraulic hose crimping machine is designed to handle hoses of all sizes and types, offering high accuracy, reliability, and affordability. With its powerful motor and adjustable settings, it quickly crimps hoses while ensuring safety and efficiency.220V/380V AC (optional)
Forged from top-grade materials
Super powerful motor
Premium molds
Excellent crimping effect
