CE Certified 640T Crimping Force Hydraulic Hose Crimping Machine with 14-87mm Range and 10 Die Sets

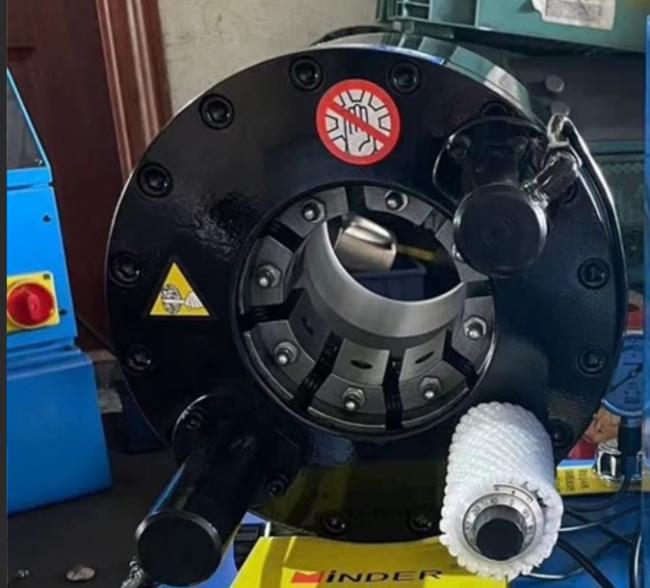

The MS-SP52 hose assembly pressing machine is designed for pressure flexible rubber hose from 1/4" to 2" inch making. It features a compact small structure that can be easily placed on any rack or horizontal platform.
This 2-inch hydraulic crimping machine can be used not only for hydraulic rubber hose fabricating, but also for steel tube pressing, wire rope swaging, industrial pipe and cable crimping applications.
- Small size with big crimping and withholding force
- Advanced oil transfer system with auto heat releasing system
- Fast closing and opening speed with quick valve

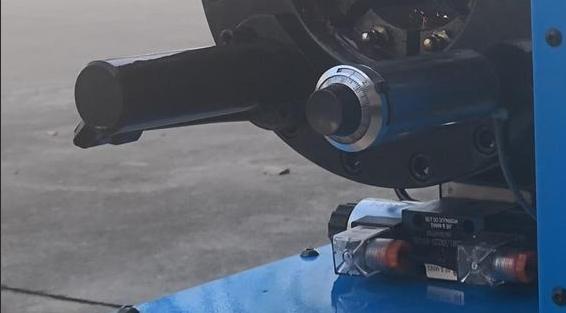

- High efficiency and top accuracy with Finn Power crimping Dial
- Stable hose crimping performance due to high quality materials
| Model | MS-SP52 Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4" - 2" (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | P52 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |

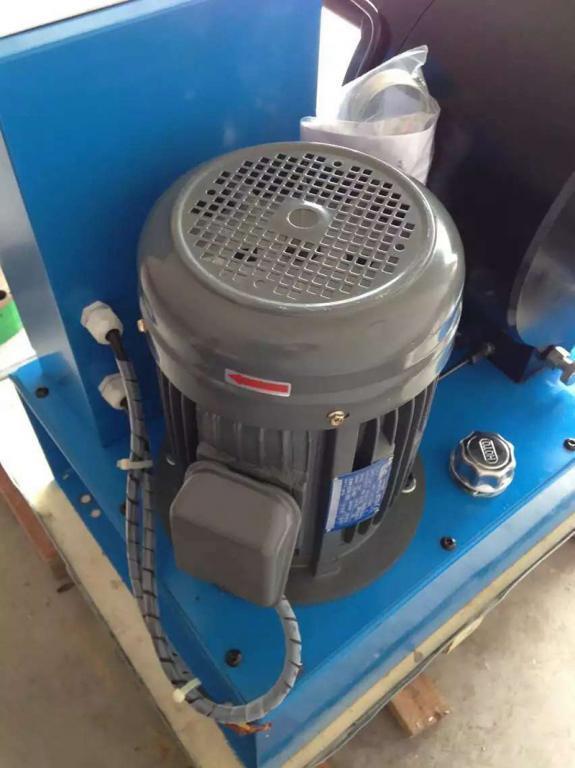

| Motor Power | 3 (KW) / 4 (KW) |
| Length | 710 (mm) |
| Width | 630 (mm) |
| Height | 770 (mm) |
| Weight | 215 (KG) |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 60 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
- Customized crimping die sets are available
- Special voltage 110V, 208V, 240V, 415V are available
- * indicates non-standard die sets
- Quick Die Change Tool
- Die Set Rack / Machine Stand
- UC control
- Foot Pedal
- Pressure Gauge
- Normal Rack
The SP52 cable pressing tool is often used for workshop hose repair service. The 10 die sets offered as standard can swage hydraulic high pressure steel wire braided hose from 1/4" to 2". Each die set has its own crimping size, and we recommend using different die sets for different hose sizes to achieve the most ideal crimping effect.
