MS-P180 Large Hydraulic Hose Crimping Machine – PLC Controlled 4 Inch Industrial Hose Crimper
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
Hydraulic Hose Crimping Machine Finpower P180 Hose Crimper Fire Hose Crimping Tool
HYDRAULIC HOSE CRIMPING MACHINE P180
DESCRIPTION
The MS-P180 Hydraulic Hose Crimping Machine is a heavy-duty industrial solution designed for high-pressure hydraulic hose assembly and large-diameter pipe crimping applications.This machine adopts a PLC microcomputer control system and, with its powerful hydraulic system and large cylinder design, has become the first choice for large equipment companies and hose processing plants.
ADVANTAGES
- Micro computer control with advanced PLC system for high stability and productivity.
- High Crimping Force with Large Hydraulic Cylinder.
- Wide Crimping Range.
- Real-Time Pressure Monitoring.
- High Precision & Leak-Free Crimping.
- Multi-Application Capability.
- Durable & Industrial-Grade Design.
TECHNICAL DATA
| Model | MS-P180 Hydraulic Hose Crimper |
|---|---|
| Crimping Range | 14 - 127 (mm) |
| Crimping Force | 950 (T) |
| Hose Range | 1/4 - 5 (inch) |
| Max. Opening | 80 (mm) |
| Die Sets | 27 |
| Die Set Type | P180 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | UC |
| Standard Voltage | 380 (V) |
| Motor Power | 5.5 (KW) |
| Length | 1050 (mm) |
| Width | 850 (mm) |
| Height | 1800 (mm) |
| Net Weight | 1400 (KG) |
P180 CRIMPER STANDARD DIE SETS
| Die No. | Crimping Range |
|---|---|
| 6* | 6 - 8mm |
| 8* | 8 - 10mm |
| 10* | 10 - 12mm |
| 12* | 12 - 14mm |
| 14 | 14 - 16mm |
| 16 | 16 - 19mm |
| 19 | 19 - 22mm |
| 22 | 22 - 26mm |
| 26 | 26 - 30mm |
| 30 | 30 - 34mm |
| 34 | 34 - 39mm |
| 39 | 39 - 45mm |
| 45 | 45 - 51mm |
| 51 | 51 - 57mm |
| 57 | 57 - 63mm |
| 63 | 63 - 69mm |
| 69 | 69 - 74mm |
| 74 | 74 - 80mm |
| 78 | 78 - 87mm |
| 84 | 84 - 92mm |
| 92 | 92 - 100mm |
| 100 | 100 - 108mm |
| 108 | 108 - 116mm |
| 116 | 116 - 126mm |
| 126 | 126 - 136mm |
| 136 | 136 - 146mm |
| 146 | 146 - 156mm |
| 156 | 156 - 166mm |
| 166 | 166 - 178mm |
| 178 | 178 - 190mm |
| 190 | 190 - 202mm |
NOTE
- " * " indicates non-standard die sets
- Customized die sets with different sizes and shapes are available
- Special voltages like 110V, 208V, 240V, 415V are available
FAMOUS PLC SYSTEM
PLC system with high stability and low maintenance cost
THICKEN STEEL BODY
High hardness with long service time

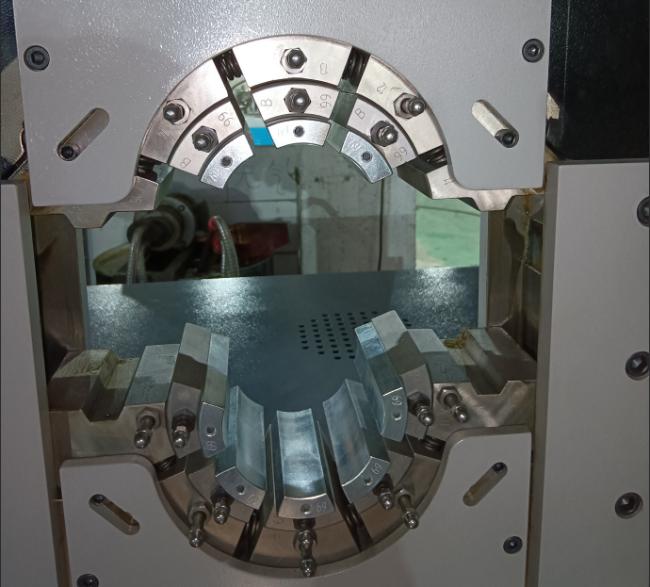

DIE SETS WITH HIGH HARDNESS
Special mold material Cr12 for die sets, hardness 59-63HRC, long life
LARGE PRODUCTIVITY FOR HOSE CRIMPING MACHINE
Forged from top-grade materials

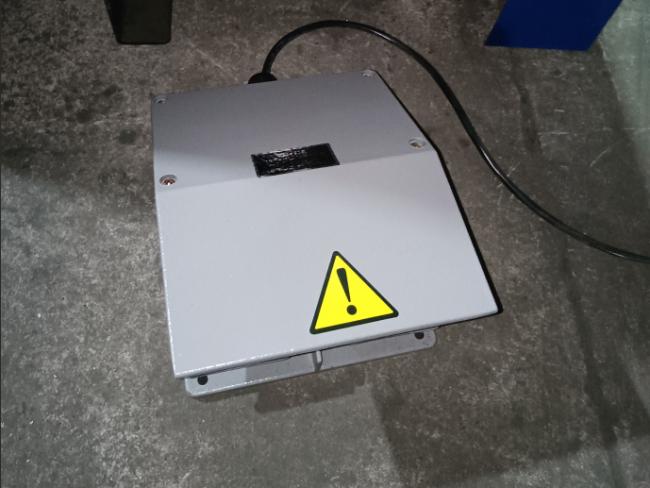

Foot pedal switch
APPLICATION FIELD
