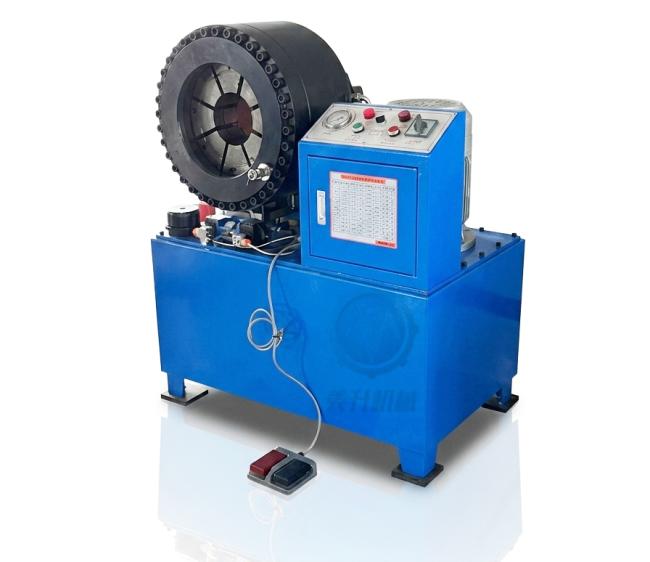

MS-P150 3000T Crimping Force Hydraulic Hose Crimping Machine with 6 Inch Hose Size and 16+1 Die Sets
The 6-inch Large Pipe Crimping Machine is engineered for precision and efficiency in handling large pipes. This industrial powerhouse features a robust hydraulic system that ensures secure, leak-free connections for a wide range of applications. With advanced crimping technology, it delivers consistent, uniform results for optimal performance and longevity.
Designed with user-friendly controls and intuitive features, operators can navigate the crimping process effortlessly, saving time and enhancing productivity. Ideal for construction projects and infrastructure development, this machine is the ultimate tool for achieving durable, high-quality pipe assemblies across various industrial sectors.
- High crimp force capable of handling up to 6-inch hydraulic hoses
- Time-saving: Accelerates large pipe crimping operations

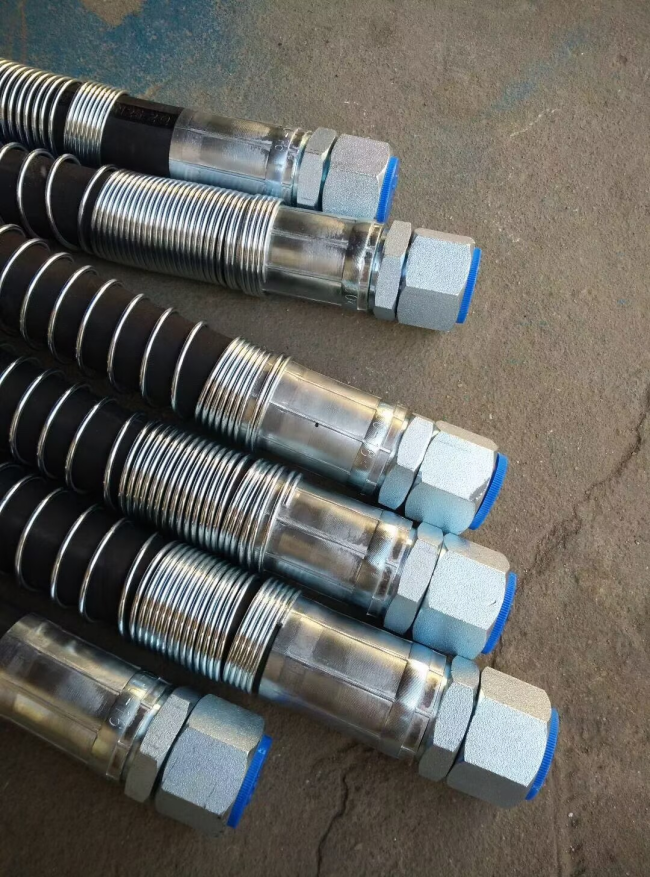

- Leak-proof: Ensures tight and secure connections
- Adaptable: Accommodates various pipe sizes
- Accurate: Provides precise and consistent results
- Robust: Designed for rugged industrial environments

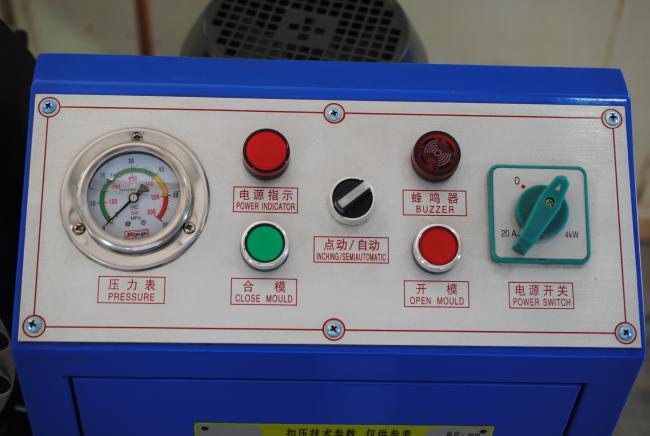

- Intuitive: User-friendly controls for effortless operation
| Model | MS-P150 Brake Hose Crimping Machine |
| Crimping Range | 14 - 187 mm |
| Crimping Force | 3000 T |
| Hose Size | 1/4 - 6 inch (6 Layers) |
| Max. Opening | 30 mm |
| Die Sets | 16 + 1 |
| Die Set Type | 51 + 102 |
| System Pressure | 31.5 Mpa |
| Accuracy | 0.05 mm |
| Control | MS |
| Standard Voltage | 220 V / 380 V |
| Motor Power | 4 KW / 5.5 KW |
| Length | 1000 mm |
| Width | 600 mm |
| Height | 1120 mm |
| Weight | 800 KG |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 75 mm | 80 |
| 75 | 75 - 87 mm | 100 |
| 87 | 87 - 100 mm | 120 |
| 100 | 100 - 115 mm | 120 |
| 115 | 115 - 130 mm | 120 |
| 130 | 130 - 147 mm | 120 |
| 150 | 150 - 170 mm | 120 |
| 170 | 170 - 186 mm | 120 |
- * indicates non-standard die sets
- Customized die sets are available
- Special voltages available: 110V, 208V, 240V, 415V
- Quick Change Tool
- UC Control
