Used Manual 2 Inch Hose Crimping Machine with 300T Crimping Force and Hand Pump Power

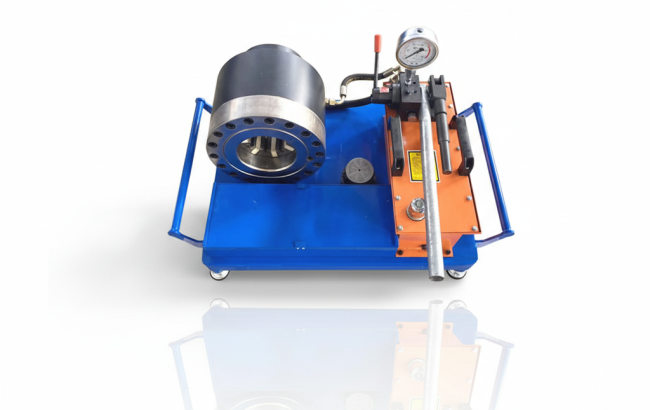

MS-51M is a manually operated hose crimper that requires no electric supply. It is the ideal choice for locations without power access. With 10 die sets, it can crimp hose from 1/4 inch to 2 inch 4SH.
- Forged crimping cylinder with high hardness
- Pressure gauge for clear system monitoring during crimping
- Ergonomic design for easy operation, even for new users
- Die set box for safe installation and storage
| Model | MS-51M Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 300 (T) |
| Hose Size | 1/4 - 2 (inch) |
| Max. Opening | 30 (mm) |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.05 (mm) |
| Control | MS |
| Standard Voltage | Hand Pump |
| Motor Power | Manual Crimping |
| Length | 980 (mm) |
| Width | 600 (mm) |
| Height | 510 (mm) |
| Weight | 200 (KG) |
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 15 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 23 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 69 mm | 80 |
| 69* | 69 - 76 mm | 100 |
• * for non standard die sets
• Customized die sets are available with different crimping sizes
• Quick Change Tool
• Quick Change Die Set Rack
• Electric Drive
• UC Control
10 sets with hardness 59-63HRC, made from high quality raw material. Die sets install on machine side.
High quality high pressure gauge, shock resistant with stable configuration.
Customized color and customized outlook for hose crimping machine.
Manual hose crimping machine can be used for hydraulic hose assembly crimping, stainless steel tube swaging, low pressure hose crimping, and cable or wire jointing.
