High Pressure Hydraulic Hose Crimping Machine with 640T Crimping Force 0.01mm Accuracy and 38 Die Sets
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
High Pressure Hydraulic Hose Crimping Tool Used Gates Hydraulic Hose Crimper For Sale
HYDRAULIC HOSE CRIMPING MACHINE USED MS-E38U
MS-E38U is an ideal choice for machinery repair workshop with world advanced structure and human design die sets. The operate panel is very simple, so it has been favored by new users.
Why Choose It?
- P32 design, advanced oil transfer passway, quick crimping
- Easy to operate with simple panel
- Crimping is controlled manually, safe and convenient
- One piece cylinder, back cylinder on the outside, easy maintenance
Technical Data
| Model | MS-E38U Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 640 (T) |
| Hose Size | 1/4 - 2 (inch) 4SH |
| Max. Opening | 31 (mm) |
| Die Sets | 10 |
| Die Set Type | 38 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 380 (V) 50HZ Three Phase |
| Motor Power | 3 (KW) |
| Length | 630 (mm) |
| Width | 450 (mm) |
| Height | 600 (mm) |
| Weight | 200 (KG) |
| Hydraulic Oil | 50 (L) |
| Warranty | 13 (Months) |
38 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
Note
- Customized die sets are available with different size or shape
- Special voltage such as 110V, 208V, 220V, 240V, 415V (60HZ) are available
- Foot pedal is available to make the hands free
- * for non standard die sets
High Accurate Crimping Dial
Crimping dial fixed on the front of the cylinder, working with high accuracy
Compact Structure
Small crimping head makes the machine light weight, but crimping force is bigger than other series
Crimping Reference Sheet
There is a crimping reference sheet paste on the electric box, help the new user handle hose crimping size

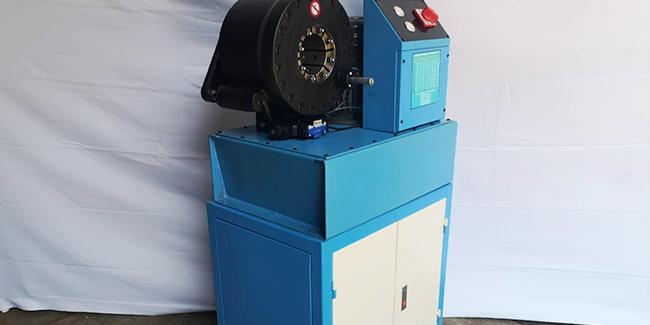

Standard Mounting Rack
E38 can be mounted on a standard rack design by our company, make crimping more comfortable![Standard mounting rack for hydraulic hose crimper]()
Application Field
Our Crimping machines are used globally in the such industries hydraulic machinery and construction machinery (excavator, roller, crane, bulldozer, driller, hammer), agricultural equipment (tractor, rotary tiller, ridge machine, sprayer), modern green house construction building scaffolding, jointing and welding industry
Certificate
CE certificate for hose crimping machine
