Low Pressure Hose Crimping Machine AC Hose Crimper Air Conditioner Hose Crimping Tool
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description

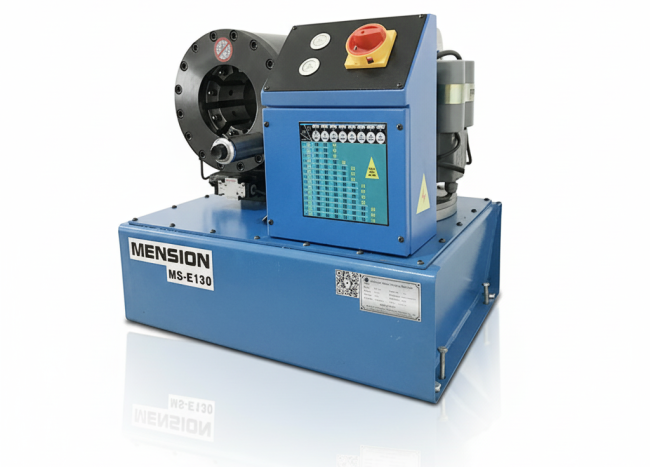

MS-E130 Low Pressure AC Hose Crimping Machine
Professional AC hose crimper with compact structure and exceptional crimping force for industrial applications.
Key Advantages
- Compact size with superior crimping ability
- High-quality hydraulic oil pump
- Fast opening with special valve system
- Hydraulic control for precise opening size
- High stability and reliable performance
Technical Specifications
| Model | MS-130 AC Hose Crimping Machine |
|---|---|
| Crimping Range | 14 - 87 mm |
| Crimping Force | 640 Tons |
| Hose Size | 1/4 - 2 inch |
| Max. Opening | 25 mm |
| Die Sets | 10 |
| Die Set Type | 130 |
| System Pressure | 31.5 MPa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | 220V / 380V |
| Motor Power | 3 KW |
| Dimensions (L×W×H) | 630 × 450 × 560 mm |
| Weight | 190 KG |
130 Hose Crimper Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8mm | 35 |
| 8* | 8 - 10mm | 35 |
| 10* | 10 - 12mm | 35 |
| 12* | 12 - 14mm | 35 |
| 14 | 14 - 16mm | 60 |
| 16 | 16 - 20mm | 60 |
| 20 | 20 - 22mm | 60 |
| 22 | 22 - 26mm | 60 |
| 26 | 26 - 30mm | 70 |
| 30 | 30 - 38mm | 70 |
| 38 | 38 - 46mm | 70 |
| 46 | 46 - 54mm | 80 |
| 54 | 54 - 64mm | 80 |
| 64 | 64 - 69mm | 80 |
| 69* | 69 - 76mm | 100 |
* Non-standard die sets. Customized die sets and special voltages (110V, 208V, 240V, 415V) available.
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
- Foot Pedal
- Pressure Gauge
- Normal Rack
Human-Engineered Operation Panel
Designed for efficiency and time-saving operation.
Dual-Bevel Die Base Design
Engineered for maximum pressing force and durability.
High-Precision Diameter Control
Advanced mechanical device ensures precise diameter control.
High-Hardness Die Sets
Premium quality die sets with exceptional hardness for long-lasting performance.
