Brake Hose Crimping Machine with 640T Crimping Force 31.5Mpa System Pressure and 14-87mm Crimping Range

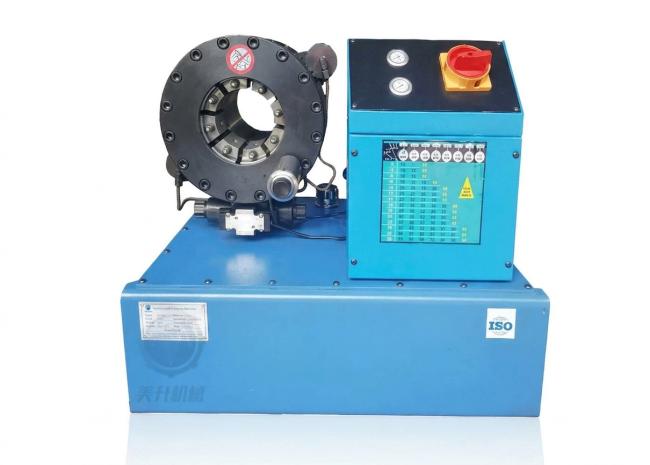

BRAKE HOSE CRIMPING MACHINE MS-E130
DESCRIPTION
MS-E130 brake hose crimping machine is a modern model with FINN POWER design. Also it can press high pressure hydraulic rubber hose up to 2 inch.
ADVANTAGES
1) Big crimping capacity,
2) Self-design block connect valve system,
3) Quick opening and closing,
4) Human die set choosing reference sheet,
5) Stable performance even after years of service.
TECHNICAL DATA
|
Model |
MS-E130 Brake Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) |
|
Max. Opening |
25 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
130 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
560 (mm) |
|
Weight |
190 (KG) |
130 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
35 |
|
8* |
8 - 10mm |
35 |
|
10* |
10 - 12mm |
35 |
|
12* |
12 - 14mm |
35 |
|
14 |
14 - 16mm |
60 |
|
16 |
16 - 20mm |
60 |
|
20 |
20 - 22mm |
60 |
|
22 |
22 - 26mm |
60 |
|
26 |
26 - 30mm |
70 |
|
30 |
30 - 38mm |
70 |
|
38 |
38 - 46mm |
70 |
|
46 |
46 - 54mm |
80 |
|
54 |
54 - 64mm |
80 |
|
64 |
64 - 69mm |
80 |
|
69* |
69 - 76mm |
100 |
NOTE
1) Customized die sets are available;
2) Special voltage 110V, 208V, 240V, 415V are availbale;
3) * for non standard die sets.
OPTIONAL
1) Quick Change Tool
2) Quick Change Die Set Rack;
3) UC control;
4) Foot Pedal;
5) Pressure Gauge;
6) Normal Rack
