650T Crimping Force Hydraulic Hose Crimping Machine with 31.5Mpa System Pressure and Digital Control System

Price Negotiable

Price: Contact Us

MOQ: 1 Set

Delivery Time: 2 - 7 Working Days

Brand: MENSION

Product Description

Two Inches Hydraulic Hose Crimping Machine Used Parker Hydraulic Hose Crimper

NUMERICAL HYDRAULIC HOSE CRIMPING MACHINE MS-NC130U

DESCRIPTION

MS-NC130 hydraulic hose crimper machine has been widely used in various industries, including hydraulic high pressure hose assembly manufacturing, low pressure industrial hose connecting, marine and sea transmission ropes, steel tube swaging, and automotive components.

ADVANTAGES

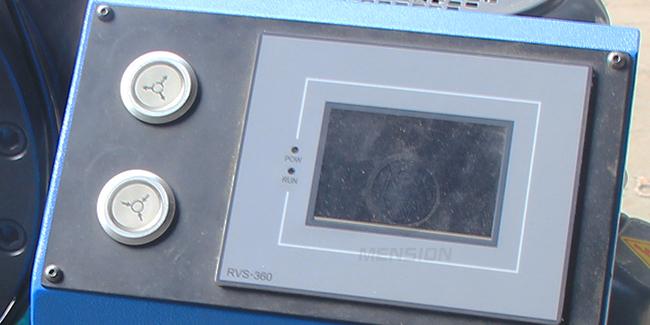

Digital control system for intelligent operation
Reasonable die sets design for better crimping results
Famous brand spare parts for improved stability

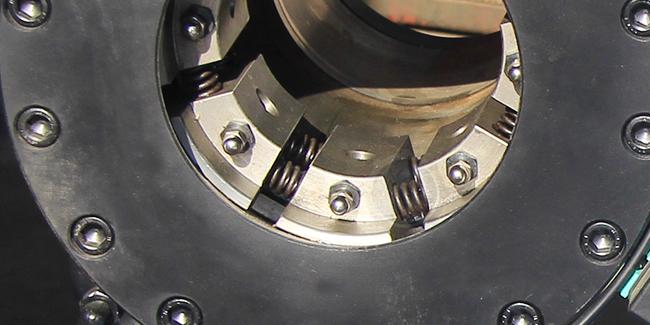

One piece forged hydraulic head for long-term durability

TECHNICAL DATA

Model	MS-NC130U Crimping Machine
Crimping Range	14 - 87 (mm)
Crimping Force	650 (T)
Hose Size	1/4 - 2.5 (inch)
Max. Opening	31 (mm)
Die Sets	13
Die Set Type	P32
System Pressure	31.5 (Mpa)
Accuracy	0.01 (mm)
Control	MS
Standard Voltage	220 (V) / 380 (V)
Motor Power	3.75 (KW)
Length	650 (mm)
Width	550 (mm)
Height	650 (mm)
Weight	240 (KG)

MS-NC130U Hydraulic Hose Crimping Machine

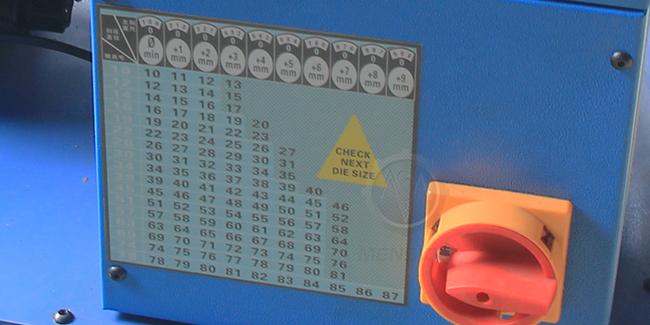

P32 HOSE CRIMPER DIE SETS

Die No.	Crimping Range	Length
6*	6 - 8 mm	55
8*	8 - 10 mm	55
10*	10 - 12 mm	55
12*	12 - 14 mm	55
14	14 - 16 mm	55
16	16 - 19 mm	55
19	19 - 22 mm	55
22	22 - 26 mm	70
26	26 - 30 mm	70
30	30 - 34 mm	70
34	34 - 39 mm	75
39	39 - 45 mm	75
45	45 - 51 mm	90
51	51 - 57 mm	90
57	57 - 63 mm	100
63	63 - 69 mm	110
69	69 - 78 mm	110
