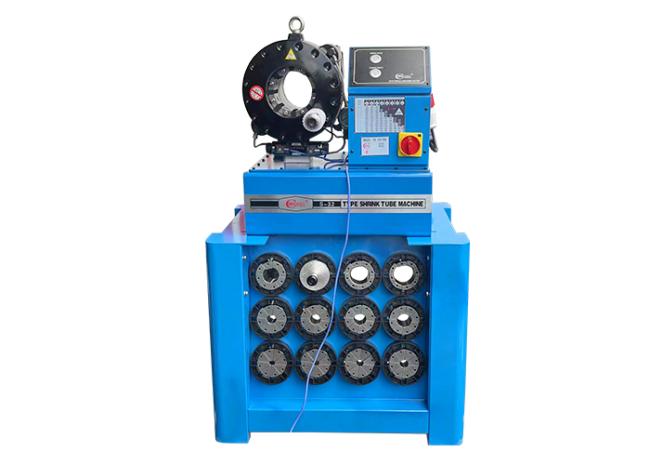

HYDRAULIC PIPE CRIMPING MACHINE SP32
DESCRIPTION
SP32 is hose crimper machine for high pressure flexible hose assembly making from 1/4 inch to 2.5 inch 1 wire to 6 wires. It is the ideal choice for single piece hose production.
ADVANTAGES
► Quick change for die sets, so the die sets can be changed at one time
► Double conical master die, big crimping force
► Foot pedal frees the hands
TECHNICAL DATA
|
Model |
MS-SP32 Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
650 (T) |
|
Hose Size |
1/4 - 2.5 (inch) |
|
Max. Opening |
31 (mm) |
|
Die Sets |
13 |
|
Die Set Type |
P32 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
3.75 (KW) |
|
Length |
650 (mm) |
|
Width |
550 (mm) |
|
Height |
1360 (mm) |
|
Weight |
310 (KG) |
P32 STANDARD DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
55 |
|
8* |
8.0 - 10.0 |
55 |
|
10* |
10.0 - 12.0 |
55 |
|
12* |
12.0 - 14.0 |
55 |
|
14 |
14.0 - 16.0 |
55 |
|
16 |
16.0 - 19.0 |
55 |
|
19 |
19.0 - 22.0 |
55 |
|
22 |
22.0 - 26.0 |
70 |
|
26 |
26.0 - 30.0 |
70 |
|
30 |
30.0 - 34.0 |
70 |
|
34 |
34.0 - 39.0 |
75 |
|
39 |
39.0 - 45.0 |
75 |
|
45 |
45.0 - 51.0 |
90 |
|
51 |
51.0 - 57.0 |
90 |
|
57 |
57.0 - 63.0 |
100 |
|
63 |
63.0 - 69.0 |
110 |
|
69 |
69.0 - 74.0 |
110 |
| 74 | 74.0 - 78.0 | 110 |
| 78 | 78.0 - 87.0 | 110 |
NOTE
• " * " for non standard die sets
• Customized die sets are available
• Special voltage 110V, 208V, 240V, 415V are availbale
► HIGH QUALITY CR12MOV 13 DIE SETS
13 die sets hardness 59-63HRC, with quick change tool, productivity improve much.
► COMPACT STRUCTURE
Compact in structure small volume, crimping with big force
► APPLICATIONS
SP32 is a hose crimper with high configuration, it is suitable for crimping high pressure stainless steel braided hydraulic ruber hose, cable and wires, steel iron square or round tubes, brake hose lines in automotive system, air suspension or springs.
