SP32 AC Hose Crimping Machine with 650T Crimping Force, 13 Die Sets, and 31.5Mpa System Pressure
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description
AC Hydraulic Hose Crimping Machine Excavator Repair Workshop Hose Crimper
WORKSHOP AC HOSE CRIMPING MACHINE SP32
DESCRIPTION
MS-SP32 AC hose crimper machine is the ideal choice for mass hose assembly production. It comes with 13 die sets, suitable for hose crimping from 1/4 inch to 2 1/2 inch. The emergency stop device ensures enhanced safety during operation.
ADVANTAGES
- Simple structure, easy maintenance
- Advanced diameter control device for high accuracy
- Quick change rack improves efficiency
- Large opening stroke
TECHNICAL DATA
| Model | MS-SP32 AC Hose Crimping Machine |
| Crimping Range | 14 - 87 (mm) |
| Crimping Force | 650 (T) |
| Hose Size | 1/4 - 2.5 (inch) |
| Max. Opening | 31 (mm) |
| Die Sets | 13 |
| Die Set Type | P32 |
| System Pressure | 31.5 (Mpa) |
| Accuracy | 0.01 (mm) |
| Control | MS |
| Standard Voltage | 220 (V) / 380 (V) |
| Motor Power | 3.75 (KW) |
| Length | 650 (mm) |
| Width | 550 (mm) |
| Height | 1360 (mm) |
| Weight | 310 (KG) |

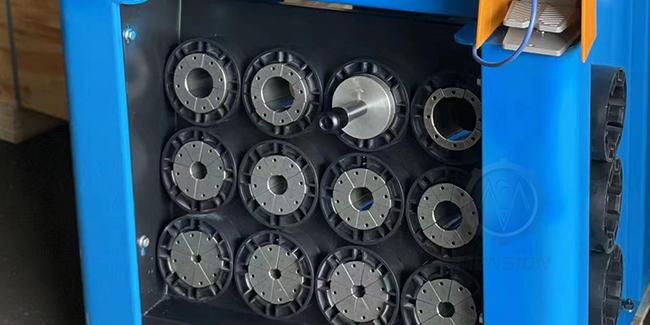

P32 CRIMPER MACHINE DIE SETS
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 55 |
| 8* | 8 - 10 mm | 55 |
| 10* | 10 - 12 mm | 55 |
| 12* | 12 - 14 mm | 55 |
| 14 | 14 - 16 mm | 55 |
| 16 | 16 - 19 mm | 55 |
| 19 | 19 - 22 mm | 55 |
| 22 | 22 - 26 mm | 70 |
| 26 | 26 - 30 mm | 70 |
| 30 | 30 - 34 mm | 70 |
| 34 | 34 - 39 mm | 75 |
| 39 | 39 - 45 mm | 75 |
| 45 | 45 - 51 mm | 90 |
| 51 | 51 - 57 mm | 90 |
| 57 | 57 - 63 mm | 100 |
| 63 | 63 - 69 mm | 110 |
| 69 | 69 - 78 mm | 110 |
NOTE
- * for non standard die sets
- Customized die sets are available
Forged from top-grade materials

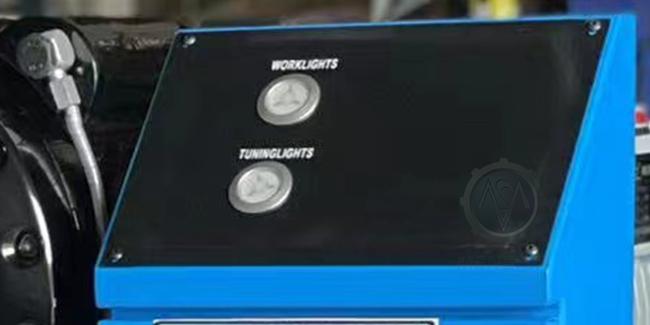

Manual control panel

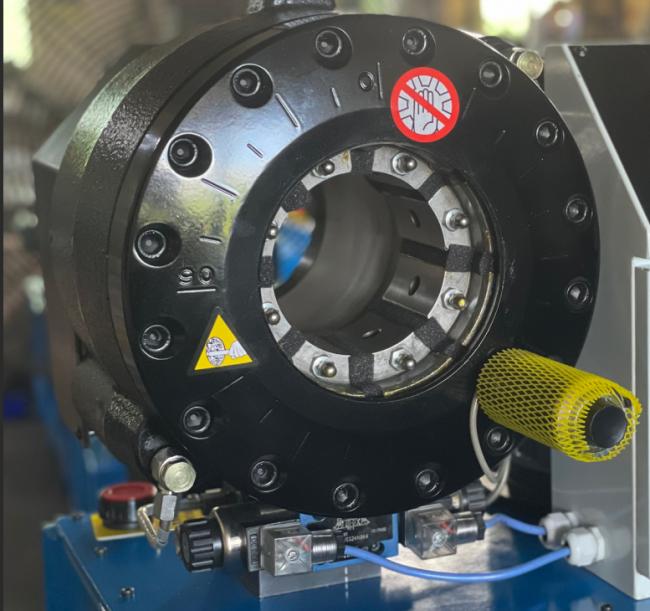

High-strength mold ![Hose crimping machine operation]()

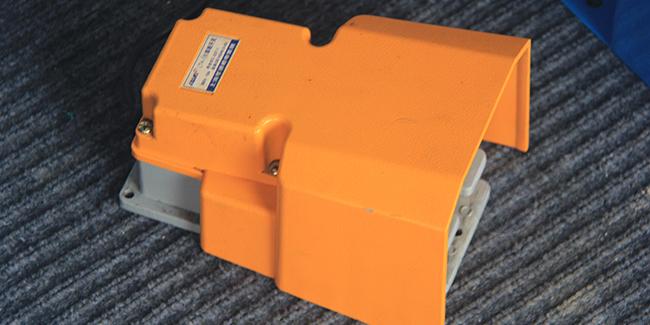

foot switch ![Hose crimping machine die sets]()

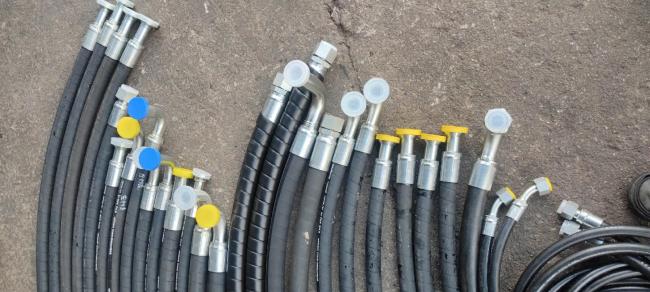

High-quality crimping effect demonstration
