Rubber Industrial Hose Crimper Automotive AC Wire Cable Pressing Machine
INDUSTRIAL HOSE CRIMPER E38
DESCRIPTION
MS-E38 rubber hose crimping machine is with crimping capacity from 1/4 inch to 2 inch. Crimping head with one piece design, prevent oil leackage problem during working.
MAIN FEATURES
► Quick opening speed, high productivity
► Die sets high hardness up tp HRC63, long service time
► Stable performance with high quality spares
► Crimping reference sheet make crimping more easily
TECHNICAL DATA
|
Model |
MS-E38 Hose Crimping Machine |
|
Crimping Range |
14 - 87 (mm) |
|
Crimping Force |
640 (T) |
|
Hose Size |
1/4 - 2 (inch) 4SH |
|
Max. Opening |
31 (mm) |
|
Die Sets |
10 |
|
Die Set Type |
38 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
220 (V) / 380 (V) |
|
Motor Power |
4 (KW) |
|
Length |
630 (mm) |
|
Width |
450 (mm) |
|
Height |
600 (mm) |
|
Weight |
200 (KG) |
| Hydraulic Oil | 50 (L) |
38 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping (mm) |
Length (mm) |
|
6* |
6.0 - 8.0 |
35 |
|
8* |
8.0 - 10.0 |
35 |
|
10* |
10.0 - 12.0 |
35 |
|
12* |
12.0 - 14.0 |
35 |
|
14 |
14.0 - 16.0 |
60 |
|
16 |
16.0 - 20.0 |
60 |
|
20 |
20.0 - 22.0 |
60 |
|
22 |
22.0 - 26.0 |
60 |
|
26 |
26.0 - 30.0 |
60 |
|
30 |
30.0 - 38.0 |
70 |
|
38 |
38.0 - 46.0 |
70 |
|
46 |
46.0 - 54.0 |
80 |
|
54 |
54.0 - 64.0 |
80 |
|
64 |
64.0 - 69.0 |
80 |
|
69* |
69.0 - 76.0 |
90 |
NOTE
• " * " for non standard mold
• Customized die sets are available with different size or shape
• Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale
• Foot pedal is available to make the hands free
► SIMPLE DESIGN FOR OPERATING, SUITABLE FOR NEW USER IN CRIMPING
► CRIMPING DIAMETER CONTROLLED BY A HIGH ACCURATE MICROMETER

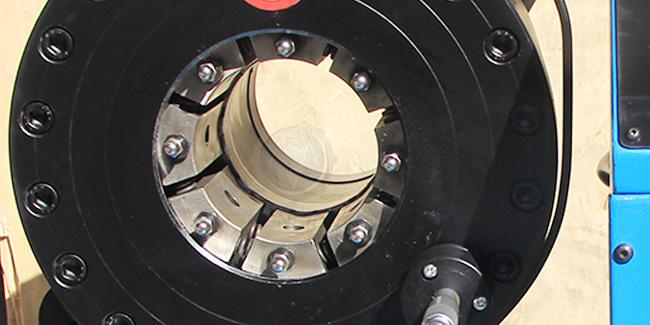

► DOUBLE CONICAL MASTER DIE AND CRIMPING CYLINDER MAKING TECHNOLOGY, HIGH FORCE
► MOTOR WITH COOPER WIRE ALUMINIUM SHEEL, GOOD HEAT RELEASING
► HYDRAULIC HOSE ASSEMBLY SAMPLES
