Hose Cutting Machine High Speed Steel Hydraulic Hose Cutting Tool Hose Skiving

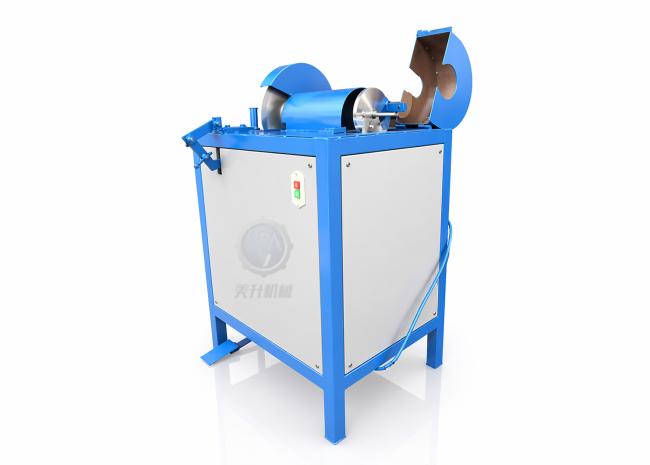

HOSE CUTTING MACHINE MS-38CS
DESCRIPTION
MS-38CS hose cutting machine is also suitable for hose rubber skiving with special skiving tool. Usually in order to connect the ferrule and fitting with the hydraulic pressure hose, the out layer need to be cut or skive.
MAIN FEATURES
1. High speed steel cutting blade, anti wear and anti rust;
2. Cutting hose control with a pedal by foot, more convenient;
3. Hose skiving with a protect cover, more safe;
4. Rubber after skiving be collect with a box.
TECHNICAL DATA
|
Model |
MS-38CS Hose Cutting Machine |
|
Hose Size |
1/8'' - 2'' |
|
Cutting Speed |
2500 (rpm) |
|
Cutting Blade |
330*32 (mm) |
|
Cutting Blade No. |
1 (pcs) |
|
Skiving Speed |
500 (r/min) |
|
Skiving Mandrel |
8 (pcs) |
|
Length |
670 (mm) |
|
Width |
520 (mm) |
|
Height |
1100 (mm) |
|
Weight |
75 (kg) |
PICTURE DETAILS FOR HOSE CUTTING MACHINE
► HUMAN DESIGN, DAFE AND EASY HOSE CUTTING
The cutting use a foot pedal to control the hose movement, safe and convenient.
► HOSE RUBBER SKIVING WITHIN A BOX
There is a cover on the hose skiving part, make it more safe.
