Manual DX68 Hose Crimping Machine For Pressure Pipe Ferrule Fittings Pressing
Price:
Contact Us
MOQ:
1 Set
Delivery Time:
2 - 7 Working Days
Brand:
MENSION
Product Description

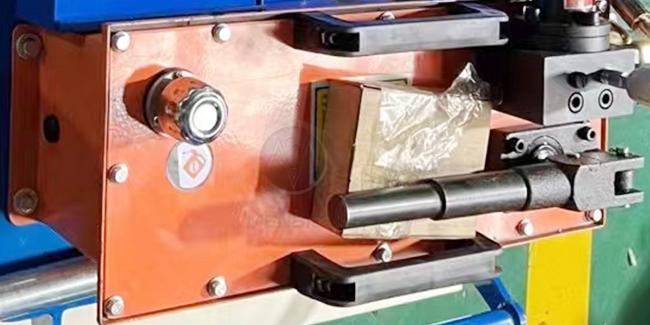

Manual DX68 Hose Crimping Machine
Portable manual hydraulic high pressure hose crimping machine for pressure pipe ferrule fittings pressing with standard ten die sets, suitable for single piece hose production.
Key Advantages
- Compact structure and light weight design
- Easy pressure releasing mechanism
- Quick operation speed
- Low maintenance cost
Technical Specifications
| Model | 51M Hose Crimper |
| Crimping Range | 14 - 87 mm |
| Crimping Force | 350 T |
| Hose Size | 1/4 - 2 inch |
| Max. Opening | 31 mm |
| Die Sets | 10 |
| Die Set Type | 51 |
| System Pressure | 31.5 Mpa |
| Accuracy | 0.01 mm |
| Control | MS |
| Standard Voltage | Manual Pump |
| Motor Power | Manual Pump |
| Length | 730 mm |
| Width | 550 mm |
| Height | 680 mm |
| Weight | 170 KG |
51 Pressing Machine Die Sets
| Die No. | Crimping Range | Length |
|---|---|---|
| 6* | 6 - 8 mm | 35 |
| 8* | 8 - 10 mm | 35 |
| 10* | 10 - 12 mm | 35 |
| 12* | 12 - 14 mm | 35 |
| 15 | 15 - 19 mm | 60 |
| 19 | 19 - 23 mm | 60 |
| 23 | 13 - 26 mm | 60 |
| 26 | 26 - 31 mm | 60 |
| 31 | 31 - 36 mm | 70 |
| 36 | 36 - 41 mm | 70 |
| 41 | 41 - 47 mm | 70 |
| 47 | 47 - 55 mm | 80 |
| 55 | 55 - 63 mm | 80 |
| 63 | 63 - 74 mm | 80 |
Important Notes
• * indicates non-standard die sets
• Customized die sets are available upon request
• Maximum opening refers to the stroke between die sets fully closed and fully opened
Optional Accessories
- Quick Change Tool
- Quick Change Die Set Rack
- UC Control System
