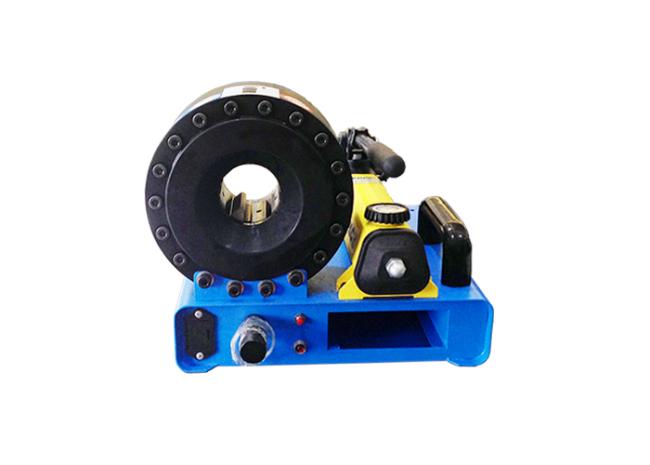

HAND PUMP HOSE PRESSING MACHINE MS-P16HP
DESCRIPTION
MS-P16HP hose crimping machine is famous for its light weight and small size. It can be take to any place and is an ideal choice for hose crimping when there is no power supply in the area.
ADVANTAGES
1. Die sets with high hardness;
2. Crimping no need any power;
3. High crimping precision.
TECHNICAL DATA
|
Model |
P16HP Pressing Machine |
|
Crimping Range |
14 - 47 (mm) |
|
Crimping Force |
150 (T) |
|
Hose Size |
1/4 - 1 (inch) |
|
Max. Opening |
20 (mm) |
|
Die Sets |
7 |
|
Die Set Type |
P16 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
Manual Pump |
|
Motor Power |
Manual Pump |
|
Length |
400 (mm) |
|
Width |
320 (mm) |
|
Height |
300 (mm) |
|
Weight |
32 (KG) |

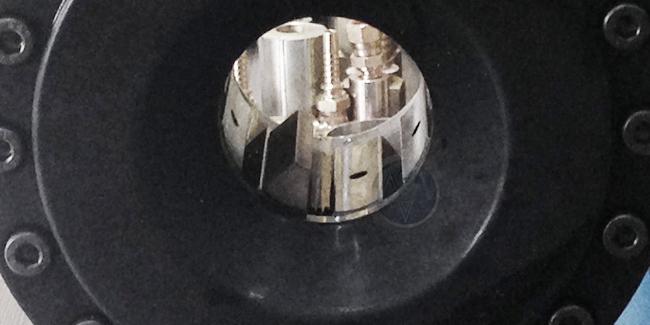

P16 HOSE CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 14mm |
55 |
|
14 |
14 - 16mm |
55 |
|
16 |
16 - 19mm |
55 |
|
19 |
19 - 23mm |
55 |
|
23 |
23 - 27mm |
55 |
|
27 |
27 - 31mm |
55 |
|
31 |
31 - 35mm |
65 |
|
35 |
35 - 41mm |
65 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Max. opening is the stroke between die sets fully closed and fully opened.
OPTIONAL
- Quick Change Tool
- Quick Change Die Set Rack;
- UC control;
