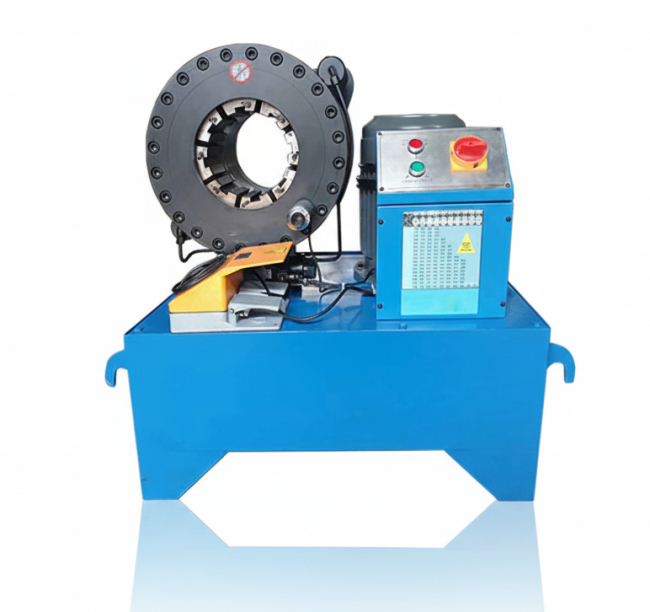

BIG MANUAL HOSE CRIMPING MACHINE
MS-E180
DESCRIPTION
MS-E180 is a four inch hydraulic hose crimper machine with big crimping power. Adapter die sets make is capable of crimping small size hose assembly.
MAIN FEATURES
1) Double use foot pedal, control opening and closing with foot
2) High quality button, long time using
3) Unique cylinder design, big force and high accuracy
TECHNICAL DATA
|
Model |
MS-E180 Pressing Hose Machine |
|
Crimping Range |
14 - 167 (mm) |
|
Crimping Force |
980 (T) |
|
Hose Size |
1/4 - 4 (inch) |
|
Max. Opening |
45 (mm) |
|
Die Sets |
18 |
|
Die Set Type |
32 180 |
|
System Pressure |
31.5 (Mpa) |
|
Accuracy |
0.01 (mm) |
|
Control |
MS |
|
Standard Voltage |
380 (V) |
|
Motor Power |
7.5 (KW) |
|
Length |
800 (mm) |
|
Width |
650 (mm) |
|
Height |
880 (mm) |
|
Weight |
510 (KG) |
E180 CRIMPER DIE SETS
|
Die No. |
Crimping Range |
Length |
|
6* |
6 - 8mm |
55 |
|
8* |
8 - 10mm |
55 |
|
10* |
10 - 12mm |
55 |
|
12* |
12 - 15mm |
55 |
|
15 |
15 - 18mm |
55 |
|
18 |
18 - 21mm |
55 |
|
21 |
21 - 24mm |
55 |
|
24 |
24 - 27mm |
55 |
|
27 |
27 - 33mm |
55 |
|
33 |
33 - 39mm |
75 |
|
39 |
39 - 45mm |
75 |
|
45 |
45 - 51mm |
90 |
|
51 |
51 - 57mm |
90 |
|
57 |
57 - 66mm |
100 |
|
66 |
66 - 73mm |
110 |
| 73 | 73 - 90mm | 110 |
| 90 | 90 - 96mm | 120 |
| 96 | 96 - 102mm | 120 |
| 102 | 102 - 108mm | 120 |
| 108 | 108 - 114mm | 120 |
| 114 | 114 - 123mm | 120 |
| 123 | 123 - 136mm | 120 |
NOTE
- * for non standard die sets;
- Customized die sets are available;
- Special voltage 110V, 208V, 240V, 415V are availbale;

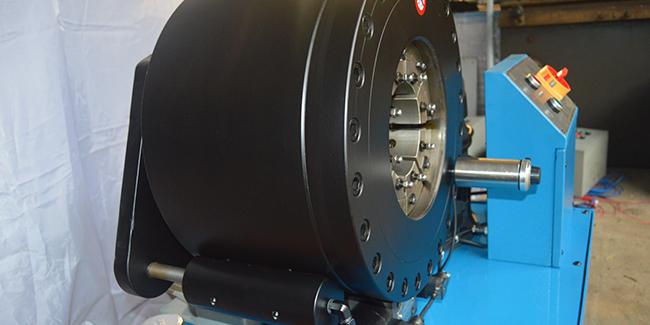

► UNIQUE CRIMPING CYLINDER
Advanced oil transfer design, improve efficiency

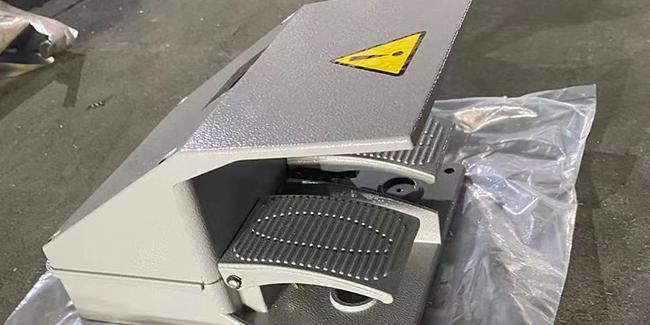

► DOUBLE USE FOOT PEDAL
Foot pedal to control the whole crimping which can frees both of your hands

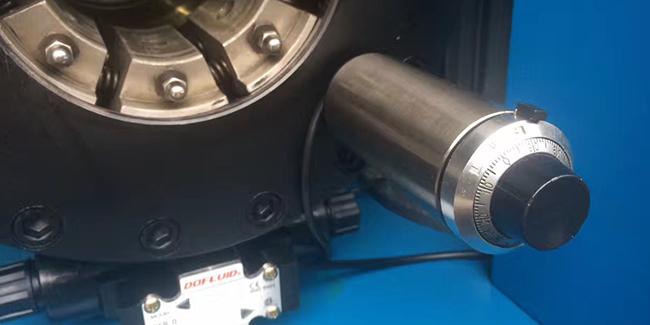

► MICROMETER OF HIGH QUALITY
High stability with long service life, scale lock function makes it more accurate
► APPLICATION FIELD
