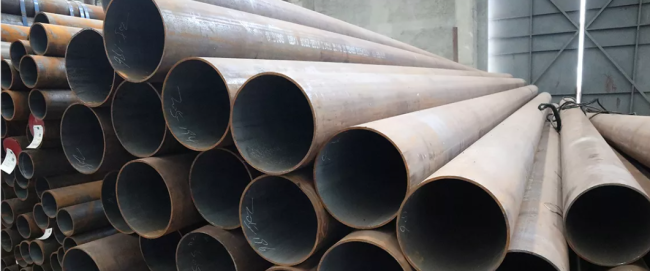

Seamless Carbon Steel Pipe Tube ASTM A53 API 5L Round Black
ASTM A53 API 5L Round Black Seamless Carbon Steel Pipe And Tube
The properties of carbon steel are high hardness, strength, wear resistance and anti-corrosion. Carbon steel is an alloy with carbon and iron, with carbon content up to 2.1% by weight. The increase in the carbon percentage will raise steel's hardness and strength, but it will be less ductile.
Product Description:
|
Product name
|
Carbon steel pipe
|
|
Material
|
10#, 20#, 45#, 16Mn, A53(A,B), Q235, Q345, Q195, Q215, St37, St42, St37-2, St35.4, St52.4, ST35
|
|
Wall Thickness
|
4.5MM~60MM
|
|
Outer Diameter
|
21.3MM~762MM
|
|
Length
|
Length:Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques |
|
Standard
|
API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS
6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711 |
|
Grade
|
10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
Grade A, Grade B, Grade C |
|
Section Shape
|
Square, Rectangular, Round,
|
|
Pipe Ends
|
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|
Surface Treatment
|
1. Galvanized
2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
|
Product Application
|
1. Fence, greenhouse, door pipe,greenhouse
2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
|
Certificates
|
API ISO9001-2008,SGS.BV
|
|
DN
|
OD
(Outside Diameter) |
ASTM A53 GRA / B
|
BS1387 EN10255
|
||||
|
SCH10S
|
STD SCH40
|
LIGHT
|
MEDIUM
|
HEAVY
|
|||
|
MM
|
INCH
|
MM
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
|
15
|
1/2”
|
21.3
|
2.11
|
2.77
|
2
|
2.6
|
-
|
|
20
|
3/4”
|
26.7
|
2.11
|
2.87
|
2.3
|
2.6
|
3.2
|
|
25
|
1”
|
33.4
|
2.77
|
3.38
|
2.6
|
3.2
|
4
|
|
32
|
1-1/4”
|
42.2
|
2.77
|
3.56
|
2.6
|
3.2
|
4
|
|
40
|
1-1/2”
|
48.3
|
2.77
|
3.68
|
2.9
|
3.2
|
4
|
|
50
|
2”
|
60.3
|
2.77
|
3.91
|
2.9
|
3.6
|
4.5
|
|
65
|
2-1/2”
|
73
|
3.05
|
5.16
|
3.2
|
3.6
|
4.5
|
|
80
|
3”
|
88.9
|
3.05
|
5.49
|
3.2
|
4
|
5
|
|
100
|
4”
|
114.3
|
3.05
|
6.02
|
3.6
|
4.5
|
5.4
|
|
125
|
5”
|
141.3
|
3.4
|
6.55
|
-
|
5
|
5.4
|
|
150
|
6”
|
168.3
|
3.4
|
7.11
|
-
|
5
|
5.4
|
|
200
|
8”
|
219.1
|
3.76
|
8.18
|
-
|
-
|
-
|
| N.D. | O.D. | SCH 10 | SCH 30/40 | ||||||||
| W.T. | NORMAL WEIGHT | W.T. | NORMAL WEIGHT | ||||||||
| (mm) | (INCH) | (mm) | (inch) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) | (mm) | (inch) | (kg/mtrs) | (lbs/ft) |
| 15 | 1/2'' | 21.30 | 0.840 | ---- | ---- | ---- | ---- | 2.77 | 0.109 | 1.27 | 0.85 |
| 20 | 3/4'' | 26.70 | 1.050 | 2.11 | 0.083 | 1.28 | 0.96 | 2.87 | 0.113 | 1.69 | 1.13 |
| 25 | 1'' | 33.40 | 1.315 | 2.77 | 0.109 | 2.09 | 1.41 | 3.38 | 0.133 | 2.50 | 1.68 |
| 32 | 1.1/4'' | 42.20 | 1.660 | 2.77 | 0.109 | 2.69 | 1.81 | 3.56 | 0.140 | 3.39 | 2.27 |
| 40 | 1.1/2'' | 48.30 | 1.900 | 2.77 | 0.109 | 3.11 | 2.09 | 3.68 | 0.145 | 4.05 | 2.72 |
| 50 | 2'' | 60.30 | 2.375 | 2.77 | 0.109 | 3.93 | 2.64 | 3.91 | 0.154 | 5.45 | 3.66 |
| 65 | 2.1/2'' | 73.00 | 2.875 | 3.05 | 0.120 | 5.26 | 3.53 | 5.16 | 0.203 | 8.64 | 5.80 |
| 80 | 3'' | 88.90 | 3.500 | 3.05 | 0.120 | 6.46 | 4.34 | 5.49 | 0.216 | 11.29 | 7.58 |
| 90 | 3.1/2'' | 101.60 | 4.000 | 3.05 | 0.120 | 7.41 | 4.98 | 5.74 | 0.226 | 13.58 | 9.12 |
| 100 | 4'' | 114.30 | 4.500 | 3.05 | 0.120 | 8.37 | 5.62 | 6.02 | 0.237 | 16.09 | 10.80 |
| 125 | 5'' | 141.30 | 5.563 | 3.40 | 0.134 | 11.58 | 7.78 | 6.55 | 0.258 | 21.79 | 14.63 |
| 150 | 6'' | 168.30 | 6.625 | 3.40 | 0.134 | 13.85 | 9.30 | 7.11 | 0.280 | 28.29 | 18.99 |
| 200 | 8'' | 219.10 | 8.625 | 4.78 | 0.188 | 25.26 | 16.96 | 7.04 | 0.277 | 36.82 | 24.72 |
| 250 | 10'' | 273.10 | 10.750 | 4.78 | 0.188 | 31.62 | 21.23 | 7.08 | 0.307 | 51.05 | 34.27 |
