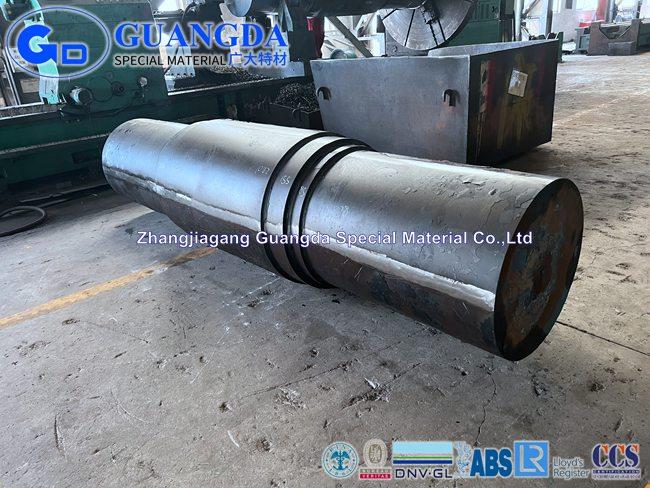

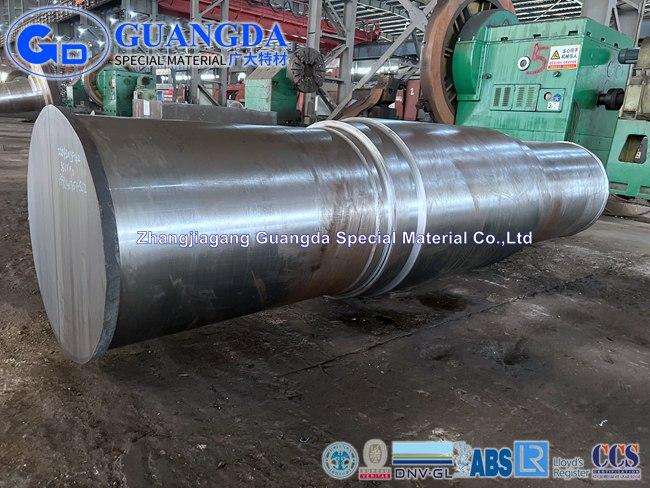

Crusher Shaft Big Shaft Drive Shaft Manufacturers Forged Shaft Manufacturer
Crusher Shaft Big Shaft Drive Shaft Manufacturers Forged Shaft Manufacturer
Guangda is a specialized in forging research and development, production, sales, service as one of the comprehensive company. We could provide rough blank or semi-finishing or finishing parts focuses on large forging equipment b.We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.
As a leading forged shafts manufacturer, we have greater resilience in our production, which makes our forged steel shaft turnaround very fast. In addition, due to our distinguished characteristics of manufacturing and raw materials, the quality of forged steel shafts that we create are of better quality than shafts machined from other stock.
Forgings Specification - Forged shaft crusher shaft
| Application | Crusher shaft |
| Diameter | φ150mm-15000mm |
| Smelting | EAF+LF+VD |
| UT | SEP1921,EN10228-3 C/c D/d |
| Heat treatment | Normalized , queching and tempering ,stress relief (if needed )+others |
| Delivery condition | Rough ,Semi-finished ,finished |
| Standard | EN10250,EN10083,SEW550 etc. |
| Equiment | 5000T pressing machine |
Material we could provide - Forged shaft crusher shaft
| Type | Material |
| Carbon steel | C15,C22,C25,C30,C35,C40,C45,C50,C55,C60,S355J2G3 etc. |
| Alloy steel |
25CrMo4,42CrMo(S)4,AISI4130,AISI4140,AISI4150,34CrNiMo6,30CrNiMo8,31CrMoV9, 18CrNiMo7-6,16MnCr(S)5,20MnCr(S)5,51CrV4,20MnCr5,20CrMnMoH etc. |
| Stainless steel | 630 17-4PH,630 17-7PH, 632 15-7MoPH,XM12 15-5PH,2205,2507,F55,2205 etc. |
| Tool and die steel | H11-1.2343,H13-1.2344, 1.2738,1.2718 ,1.2343, 1.2312 ,XPM , 80, DVA etc. |
| Special steel | GH2132, GH3030, GH3128, GH4145 ,GH4169 ,GH4080 ,Inconel600 , Inconel601 ,Inconel625 ,Inconel718 N07718 / GH4169, Inconlex - 750, Incoloy800H,Incoloy825,Incoloy901,Incoloy925,Incoloy926 etc. |
Blank Forgings Test - Forged shaft crusher shaft
- Chemical composition
- Hardenability
- Reduction ratio
- Heat treatment process
- Grain size and microstructure
- Cleanliness
- Hardness test
- Mechanical test
- UT
Guangda - Forged shaft crusher shaft
Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003, is one of the forging manufacturer for research and development, production, sales, service as one of the comprehensive company. We located in Jiangsu Province besides Shanghai. We provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .
We are qualified by the classifications such as PED,DNV, BV, Rina, ISO, GL, ABS, LR .Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.
There are two major product systems of alloy materials and alloy products:The alloy materials include high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state; Alloy products mainly include wind power equipment, rail transit and various precision mechanical parts made of alloy materials.
Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.
Crusher Shaft
Big Shaft
Drive Shaft Manufacturers
