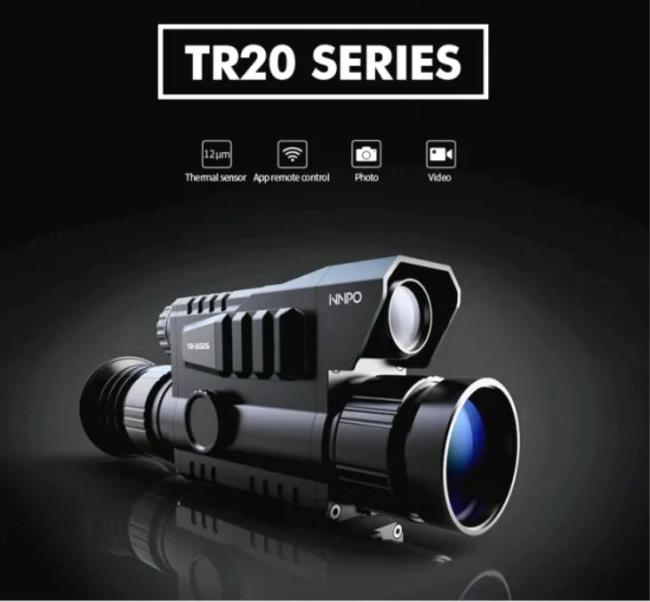

TR20 Thermal Imaging Scopes 384* 288 IR High Resolution And 35mm Focal Length
Price:
Negotiable
Brand:
OEM, ODM All Available
Product Description
TR20 Thermal Imaging Scopes 384* 288 Ir Resolution And 35mm Focal Length
Parameter:
| TR20 | 25mmm |
| Resolution,Pixel | 384×288 |
| Refresh Rate | 50Hz |
| Pixel Size, micron | 12μm |
| Objective Lens | 25mm/f1.0 |
| Magnification | 2.04 - 8.16 x |
| Digital zoom | 2x,4x |
| Eyerelief | 40mm |
| Field of View (HxV) | 10.5 x 7.9 |
| Dioptre adjustment, dpt | ± 5 |
| Reticle Type | 8-Pattern optional, or “NO reticle” |
| Reticle Color | 4 colors: White, Black, Red and blue |

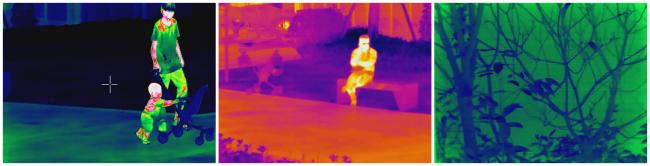

| Image Palettes | White Hot / Black Hot/ red hot /green hot/ Iron red / Sky |
| Display Resolution | 1280x960 |
| Laser locator | 1mw red dot CAL |

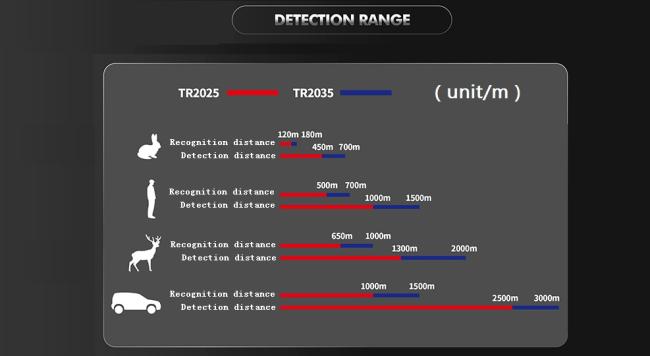

| Detection distance Human(1.8×0.5)m | 1000 |
| Detection distance Vehicle(2.3×2.3)m | 2500 |
| Recognition distance Human(1.8×0.5)m | 500 |
| Recognition distance Vehicle(2.3×2.3)m | 1000 |
| Battery Type | Li-ion 18650 Rechargeable Battery Replaceable |
| Battery Life (Operating) | 5 hours |
| External power supply | USB type c |
| Protection rate | IP66 |
| Operating Temperature | -30℃ ... +60 ℃ |
| Storage Temperature | -50℃.. +70 ℃ |
| Size (L × W × H),mm / inch | 188.8mm*51mm*74.1mm |
| Weight (W/o battery),Kg/ oz | 560g |
| Housing Materials | Aluminum Alloy |
Features:

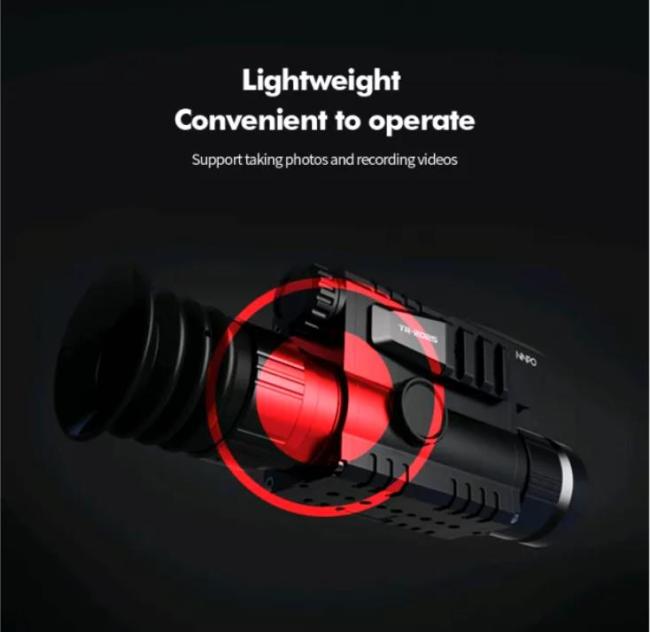

1.Light weight,Compact size,Powerful functions
2.Rugged with high Shock Resistance
3.12um thermal imaging sensor, Ultra clear image quality
4.Mobile with Wifi connection for remote control
5. Expandable Laser Rangfinder (optional)
