IR510 N1 Infrared Illuminator Thermal Imaging Monoculars 19mm Focus

Price Negotiable

Price: Negotiable

Brand: OEM, ODM All Available

Product Description

Infrared Thermal Imaging Monocular Night Vision High Frame Rate 510 N1 Handheld

Parameter:

	IR510 N1	IR510 N1 WIFI	IR510 N2	IR510 N2 WIFI
Detector
Detector Type	400×300@17μm
Spectral Range	8μm~14μm
Lens
Focus	19mm		25mm
Focusing	free		Manual
FOV	19.0°×14.5°		14.6°×11.1°
Screen	Colorful 0.2″LCOS
Viewfinder	Monocular, diopter adjustable±4
Frame	50Hz
Digital Zoom	×2, ×4
Color Palette	Black hot, white hot, red hot 1, red hot 2, red hot 3
Fuctions
Photograph	×	×	×	×
Additional functions	Illuminator or laser pointer	Illuminator or laser pointer	Illuminator or laser pointer	Illuminator or laser pointer



	or neither	or neither	or neither	or neither
Cross cursor	√	√	√	√
Image enhancement	×	√	×	√
Wi-Fi	×	√	×	√
Zoom	√	√	√	√
Freeze	√	×	√	×
Charging indicator	√	√	√	√
Active indicator	√	√	×	√
Power
Battery	Internal Li-ion battery,3.7V,3200mAh
Working Time	≥5h
Adapter	Standard USB power adapter, max 10W

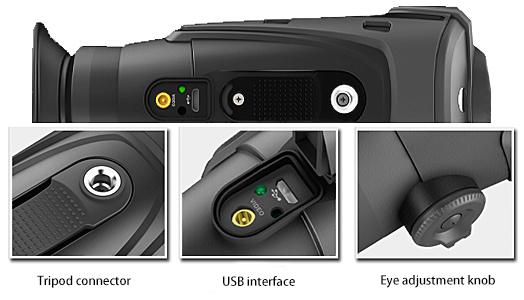

Interface
USB	Charging
Video Output	MCX Connector,PAL/NTSC
Environment Characteristics
Working Temperature	-10℃~50℃
Storage Temperature	-30℃~60℃
Humidity	10%~95%
Shock	10Hz~150Hz~10Hz 0.15mm IEC60068-2-6
Encapsulation	IP66
Drop	1m drop		N/A
Physical Parameter
Weight	350g		375g

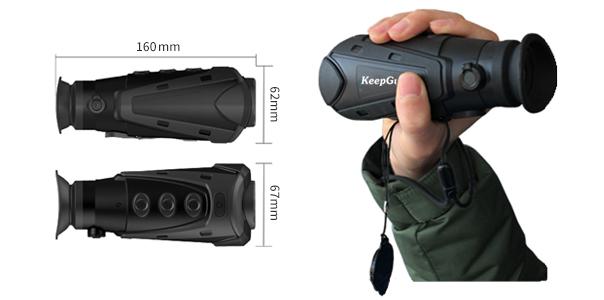

Size	160mm×67mm×62mm		168mm×67mm×62mm
Package
Standard accessories	thermal imager/ power adapter/ USB cable/ video cable



	/lens cap/ wrist strap/ shoulder strap/ soft drawstring bag/ user manual
Optional accessories	N/A		40mm extender lens(FOV:9.3°×7.0°)
Detection Range
Human:1.8m×0.5m	500m		700m
Vehicle:2.3m×2.3m	1300m		1700m
Recognition Range
Human:1.8m×0.5m	300m		350m
Vehicle:2.3m×2.3m	500m		700m
