Long Range Infrared Thermal Scope With 400*300 IR Resolution And 50mm Focal Length
TS450 Infrared Thermal Scope With 400*300 IR Resolution And 50mm Focal Length
Parameter:
| Model | TS425 | TS435 | TS450 |
| Detector | |||
| Detector Type | 400×300 @17μm, VOx | ||
| Spectral | 8μm～14μm | ||
| NETD | ≤50mk | ||
| Lens | |||
| Focal Length | 25mm F1.1 | 35mm F1.2 | 50mm F1.2 |
| Focusing | Manual Focus | ||
| FOV | 14.9°×11.2° | 10.7°×8.0° | 7.5°×5.6° |
| Display | |||
| Display | Color 0.39-inch OLED Display, 1024×768 | ||
| Eyepiece | Exit pupil distance 48mm, eyepiece magnification 14× | ||
| Magnification | 1.6~6.4× | 2.3~9.2× | 3.3~13.2× |
| Video Output System | PAL 50Hz | ||
| External Video Display | Full color video output by external interface, with menu | ||
| Imaging | |||
| Frame Rate | 50Hz | ||
| Digital Zoom | 2×,4× | ||
| Color Palettes | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot | ||
| Picture-in-picture | On/off,the position is adjustable | ||
| Functions | |||
| hotspot tracking | Yes | ||
| Compensation Modes | Auto Compensation / Shutter Compensation / Scene Compensation | ||
| Calibration | 25m/50m/100m | ||
| Stadiametric rangefinder | 1.8m/0.5m/0.25m | ||
| Gun Types Selection | 6 Types | ||
| Power Supply | |||
| Battery Type | Interchangeable Li-ion battery 18650 x 1, Non-rechargeable on the device | ||
| Battery Operating Time | ≥3H(Standard low temp battery,Observation status only) | ||
| ≥5H(Panasonic 3400mah standard 18650 battery,Observation status only) | |||
| Interface | |||
| Video Interface | Lemo | ||
| Environmental Characteristics | |||
| Operating Temperature | -40°C-50°C | ||
| Shock | 500G/1ms | ||
| Encapsulation | IP67 | ||
| Certificate | RoHS,CE | ||
| Weight & Dimensions | |||
| Weight(excl battery) | 660g | 660g | 720g |
| Dimensions | 230mm×90mm×75mm | 230mm×90mm×75mm | 250mm×90mm×75mm |
| Package Contents | |||
| Standard | Lens cap,battery,Charger,Video cable, | ||
| Pick-up gun rack,Hard transport case,User Manual | |||
| Detection Range | |||
| Human:1.8m×0.5m | 700m | 1000m | 1400m |
| Vehicle:2.3m×2.3m | 1700m | 2400m | 3000m |
| Recognition Range | |||
| Human:1.8m×0.5m | 350m | 500m | 700m |
| Vehicle:2.3m×2.3m | 700m | 1000m | 1400m |
Features:

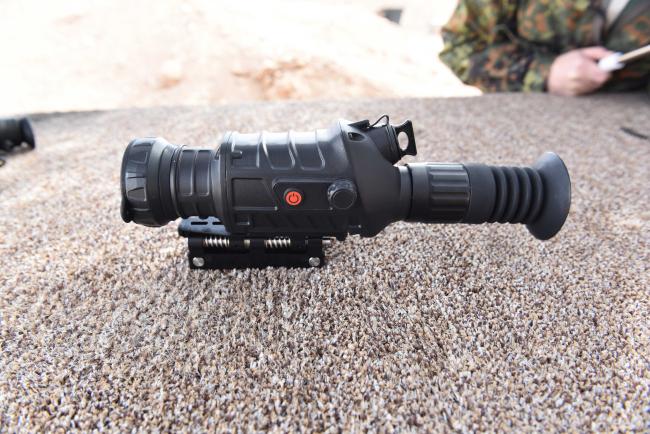

TS425/ 435/ 450 Thermal scopes
TS425/435/450 is an economical civilian infrared thermal imaging scope that includes 25mm/35mm/50mm objective lenses.With 400x300 pixel TEC metal-encapsulated thermal detector, it can detect longer range and capture vivid images of higher clarity.TS thermal riflescope also features with compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in any harsh weather.
Main Features of TS425 TS435 TS450 Thermal Imaging scope
· Ergonomic design,easy operation
· Single hand-operation with a roller button
· Battery-mount user-friendly design, both side can be mounted, change battery easily in darkness.
High Quality Image
· Excellent imaging performance, with 17μm@400x300 TEC metal-encapsulated thermal detector for longer detection range and crisper images.
· 50Hz high frame rate, ensuring capture smooth and vivid image during fast motion of observer or object of observation.
· 1024x768 resolution AMOLED eyepieces, colorful and detailed images
Adaptable
· Zoom-in on the center of the reticle, and the relative position of the aiming point and the reticle remains unchanged to ensure the aiming accuracy.
· The mil of the reticle can be zoomed in with the image, no conversion required, avoid errors.
· With multi-user customized settings, parameter information of an array of reticles can be saved to match different rifles.
