RE550 Military Thermal Binoculars 384×288 Portable Thermal Imagers IP67
High Quality Hand-Held Multifunctional Infrared Military Thermal Binoculars
Parameter:
| Detector performance | Product Name | re550 |
| Detector type | uncooled focal plane micro thermal type | |
| Wavelength range | 8 - 14 µ M | |
| Resolution | 384 * 288 | |
| Frame rate | 50Hz | |
| Field of view | 10.8 ° * 8.3 ° / 5.4 ° * 4.1 ° (Extended) | |
| Noise equivalent temperature difference (NETD) | ≤ 60mk@30 ℃ | |
| Focusing mode | automatic or electric focusing | |
| image display | Display | HD OLED binocular display, 800 × six hundred |

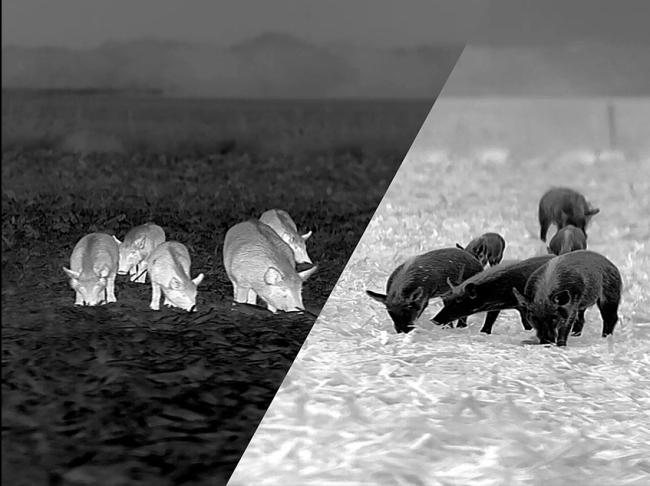

| Image polarity | white heat / black heat | |
| CCD | Imager | 1 / 3 "CCD, pixel 795 (H) × 596(V) |
| Field angle | 10.8 ° × 8.3° | |
| Image storage | Memory card | built in memory |
| Storage method | photographing / video recording | |
| File format | BMP / avi | |
| Storage capacity | more than (10000 videos or 8 hours of videos) | |
| function | Brightness / gain | automatic / manual |
| Polarity change | black heat / white heat | |
| Electronic zoom | x 2, X3, x 4 | |
| Image enhancement | Yes | |
| Image filtering | Yes | |
| Power system | Battery type | rechargeable lithium battery |
| Continuous working time of battery | > 5 hours | |
| Charger | special battery charger | |
| Environmental adaptability | Operating temperature | - 30 ℃ ~ 50 ℃ |
| Storage temperature | - 40 ℃ ~ 60 ℃ | |
| Environmental adaptability | Humidity | ≤ 90% (non condensing) |
| Protection grade | IP67 | |
| physical characteristics | Weight | ≤ 1.4kg |
| Shell color | Black (standard) | |
| Size | 210 (L) mm × 195(W)mm × 85(H)mm | |
| External interface | External power supply | Yes |
| External video | pal | |
| USB interface | Yes | |
| Installation interface | 1 / 4 "- 20-unc | |
| Detection distance | Person (1.7) × 0.5)m | 1650m |
| Vehicle (2.3) × 2.3)m | 2300m | |
| Recognition distance | Person (1.7) × 0.5)m | 550m |
| Vehicle (2.3) × 2.3)m | 76m |
Features:
1. OLED high resolution (800*600 pixels), high-performance display, electronic magnification
2. Fast auto focus, with photo and video functions
3. IP67 protection grade, suitable for various environments
4. Built-in visible light camera, more convenient for on-site forensics and video recording
5. Light weight, easy to operate
Application field:
1. Its role in anti-terrorism, investigation, border defense, anti-drug night vision, border patrol, border checkpoint monitoring, water search and rescue, prison monitoring, night vision patrol, and epidemic prevention.
2. Forest fire prevention: infrared thermal imager fire warning, far-infrared camera system 24-hour uninterrupted monitoring, intelligent temperature grayscale warning, forest fire, residual fire monitoring, forest scenic spot monitoring, patrol law enforcement.
3. Marine affairs: Infrared thermal imagers can be used for all-weather (24-hour) observation, search, monitoring, auxiliary navigation, safety precautions, state detection of electromechanical equipment on board, firefighting, etc. It has a wide range of applications and is very suitable for use in marine environments.
