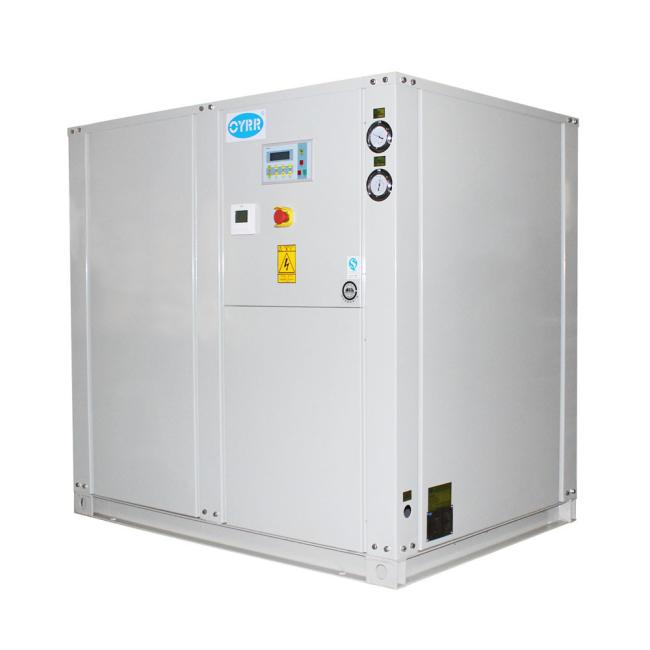

Box Type Industrial Water Cooled Liquid Chiller Commercial Energy Saving 220 KG AC380V
commercial energy saving Box Type Industrial Water Cooled Chiller
Industrial water cooled chillers are designed by Eurasian Freezing Equipment Co., Ltd. for industrial cooling purpose, it can satisfy cooling needs of industrial process and industrial products. Chilled water temperature adjustment range is 10-20 degrees. In addition to the standard specification, various of non-standard units can be customized to meet specific end-users requirements. Especially the integrated industrial water chillers which with small volume, is convenient to install and easy to operate,can save space and cost for the customers.Units can be used in electronics, biology, plastic fields, chemical, pharmaceutical, industrial processing equipment and food processing or other industrial fields.
Our company also produce some special units like power supply industrial chiller, sea water source air-conditioning chiller units.
Cooling Capability: 3HP~45HP (10KW~168KW/3 Ton~ 48 Ton )
Power supply: 380V/50HZ/3PH (customize other power if need)
Evaporator water inlet/outlet temperature: 17°C/12°C
Special configure : built-in Chilled water pump and water tank.
Feature 1.
1.1 The units are installed with scroll type and double screw compressors, suitable condensers, evaporators and expansion valve.
1.2 The units can be equipped with heat recoverer. For air-conditioning using case, the recyclable heat account for 30% -80%of total refrigeration capacity. The hot water temperature can reach 70 degrees.
2. Running stable
2.1 The units has 7 safety components to ensure the normal operation of the units.
2.2 With double compressors installed, when one compressor has problems, the other compressor will keep working properly.
2.3 To ensure the machine performance in line with national standards, all the units passed the test of national security detection system before delivery of the products.
3. Various of refrigerant to meet customers' specific requirements.
According to customers' request ,various of refrigerant, like R22.,R407C,R134a.will be available for customer's option.
4. Easy installation and maintenance
4.1 The units are filled with refrigerant and lubricant before delivery, customers only need to connect the inlet pipe, outlet pipe and power to run.
4.2 The control interface directly display the fault contents, it's much easier for customers to understand and sort out any problems.
