Double Pass Shell And Tube Heat Exchanger Evaporator In Two Circuits Refrigeration System
Price:
USD 1000-10000 /per piece
MOQ:
1 piece
Delivery Time:
15 work days
Brand:
GHE
Product Description
shell tube heat exchanger working as condenser in two circuits refrigeration cooling system
Our CT series is specilaized name for shell tube evaporator series ,with signle circuit,doube circuits,triple circuits and more .
Features:
The structure of Shell-tube heat exchanger is strong, we can choose a variety of materials in manufacturing, adaptability is extremely strong, especially widely used in high temperature, high pressure and large devices .
Typical Application
Condenser in Screw chiller system
Shell and tube condenser is a kind of heat exchanger commonly used in chillers. Similar to shell and tube evaporator, shell and tube condenser is composed of shell, tube sheet, heat transfer tube bundle, cooling water distribution components (water cover or A closed water-cooled condenser composed of inlet and outlet pipe joints of cooling water and refrigerant.
The shell of the small condenser can choose thick seamless steel pipe. The shell of the large condenser is made of steel plate coil welding. Tube sheets are welded to both ends of the shell to form a complete shell. Many holes (tube holes) are processed on the tube plate. After the heat transfer tube bundle penetrates into the tube hole, both ends are connected to the tube plate by expansion or welding, and must have good air tightness.
Shell and tube condensers are mainly used in water-cooled chillers. According to the spatial orientation (vertical or horizontal) of the shell and the heat transfer tube bundle, the shell and tube condenser can be divided into two types: vertical and horizontal. But no matter which type it is, the cooling water goes on the tube side (inside the heat transfer tube bundle), and the refrigerant goes on the shell side (in the shell, the space outside the heat transfer tube bundle), that is, the high-temperature, high-pressure refrigerant vapor is in the The point where the outer surfaces of the heat transfer tubes cool, condense and converge to the shell. The reason for this arrangement of the process is because the average heat transfer coefficient between the cooling water and the tube bundle is generally higher than the average heat transfer coefficient of refrigerant vapor condensation, and condensation requires a larger heat exchange surface; The pressure of the high-pressure refrigerant vapor is controlled within a certain range, and a large space is also required.
GHE provide customers in HVAC and refrigeration industries with quality and stabilization shell tube evaporators and condenser ,we help customer to create value with our honest attitude and competitive price .
| Flooded Evaporator Specifications/Single Circuit (351.7KW~1143KW) R22(R134a,R407c others on request) | |||||||||||||||
| No. | Model | Cap./KW | Dimensions/mm | Connection Dia./inch | Weight/kg | ||||||||||
| A | B | C | D1 | D2 | E | F | G | H | I | J | K | ||||
| 1 | ET-F100A | 351.7 | 3320 | 3200 | 3004 | 502 | 600 | 185 | 240 | 4 | 3/8 | 4 | 1~ 1/8 | 1~ 1/8 | 910 |
| 2 | ET-F115A | 404.4 | 3320 | 3200 | 3004 | 502 | 600 | 185 | 240 | 960 | |||||
| 3 | ET-F130A | 457.2 | 3320 | 3200 | 3004 | 502 | 600 | 185 | 240 | 1~3/8 | 1~3/8 | 1050 | |||
| 4 | ET-F140A | 492.4 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 5 | 1090 | ||||
| 5 | ET-F150A | 527.5 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 1120 | |||||
| 6 | ET-F165A | 580.3 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 5 | 2~1/8 | 2~1/8 | 1165 | ||
| 7 | ET-F180A | 633.0 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 1300 | |||||
| 8 | ET-F190A | 668.2 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 1310 | |||||
| 9 | ET-F210A | 738.6 | 3320 | 3200 | 3004 | 607 | 710 | 200 | 300 | 6 | 1/2 | 1355 | |||
| 10 | ET-F220A | 773.7 | 3320 | 3200 | 3004 | 607 | 710 | 200 | 300 | 1410 | |||||
| 11 | ET-F250A | 879.2 | 3820 | 3700 | 3504 | 607 | 710 | 200 | 300 | 1480 | |||||
| 12 | ET-F285A | 100.2 | 3820 | 3700 | 3504 | 607 | 710 | 200 | 300 | 1530 | |||||
| 13 | ET-F300A | 1055.1 | 3820 | 3700 | 3504 | 607 | 710 | 200 | 300 | 1570 | |||||
| 14 | ET-F315A | 1107.8 | 3820 | 3700 | 3504 | 660 | 760 | 200 | 355 | 8 | 1900 | ||||
| 15 | ET-F325A | 1143.0 | 3820 | 3700 | 3504 | 660 | 760 | 200 | 355 | 1950 | |||||
|
Note: 1. Working condition(Cap.A): Te=2℃,Tc=40℃,Tsuc=5℃,Ti=120℃,T0=7℃;Change as R134a,Heat Exchange Cap: QR134A=0.8QR22;
|
|||||||||||||||
| Flooded Evaporator Specifications/Single Circuit (351.7KW~1143KW) R22(R134a,R407c others on request) | |||||||||||||||
| No. | Model | Cap./KW | Dimensions/mm | Connection Dia./inch | Weight/kg | ||||||||||
| A | B | C | D1 | D2 | E | F | G | H | I | J | K | ||||
| 1 | ET-F100B | 351.7 | 3320 | 3200 | 3004 | 502 | 600 | 185 | 240 | 4 | 3/8 | 2~1/8 | 1~ 3/8 | 5/8 | 910 |
| 2 | ET-F160B | 562.7 | 3320 | 3200 | 3004 | 557 | 660 | 185 | 260 | 5 | 3'' | 1150 | |||
| 3 | ET-F190B | 668.2 | 3320 | 3200 | 3004 | 607 | 710 | 185 | 260 | 4 | 1~5/8 | 7/8 | 1310 | ||
| 4 | ET-F200B | 703.4 | 3320 | 3200 | 3004 | 607 | 710 | 185 | 260 | 1330 | |||||
| 5 | ET-F210B | 738.6 | 3320 | 3200 | 3004 | 607 | 710 | 185 | 260 | 1350 | |||||
| 6 | ET-F230B | 808.9 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 260 | 6 | 1440 | ||||
| 7 | ET-F250B | 879.2 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 260 | 1480 | |||||
| 8 | ET-F260B | 914.4 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 260 | 1500 | |||||
| 9 | ET-F280B | 984.7 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 260 | 1530 | |||||
| 10 | ET-F300B | 1055.1 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 260 | 1570 | |||||
| 11 | ET-F315B | 1107.8 | 3827 | 3707 | 3504 | 607 | 710 | 185 | 355 | 8 | 1600 | ||||
| 12 | ET-F335B | 1178.2 | 3827 | 3707 | 3504 | 660 | 760 | 185 | 355 | 1950 | |||||
| 13 | ET-F370B | 1301.3 | 3827 | 3707 | 3504 | 660 | 760 | 185 | 355 | 5 | 2~1/8 | 1~1/8 | 2010 | ||
| 14 | ET-F400B | 1406.8 | 3827 | 3707 | 3504 | 710 | 820 | 200 | 375 | 1/2 | 2310 | ||||
| 15 | ET-F450B | 1582.6 | 3827 | 3707 | 3504 | 710 | 820 | 200 | 375 | 2390 | |||||
| 16 | ET-F480B | 1688.1 | 3827 | 3707 | 3504 | 710 | 820 | 200 | 375 | 2440 | |||||
| Note: 1. Working condition(Cap.A): Te=2℃,Tc=40℃,Tsuc=5℃,Ti=120℃,T0=7℃;Change as R134a,Heat Exchange Cap: QR134A=0.8QR22; | |||||||||||||||

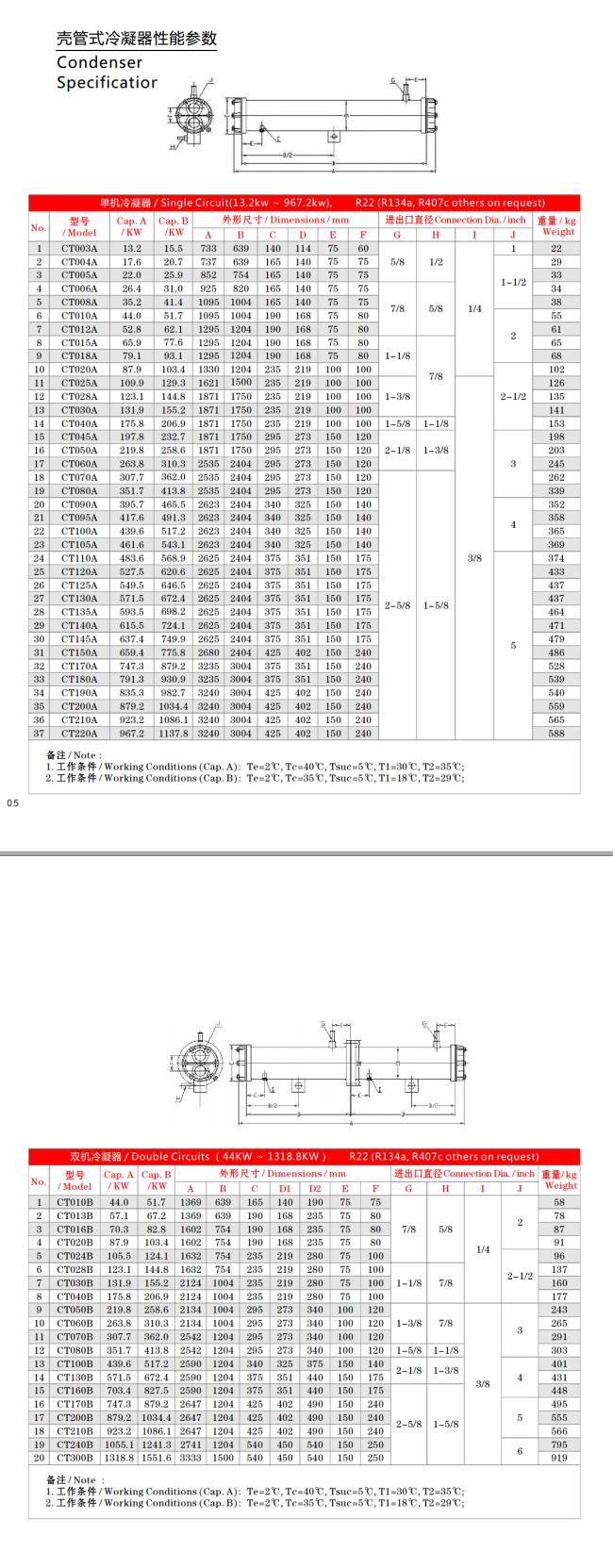

Shell-tube Condenser Specification
