HNBR NBR PHE Gaskets Heat Exchanger Rubber Material EPDM VITON
Pltae Heat exchanger Rubber material NBR ,HNBR,EPDM ,VITON,etc.
we welcome customer to visit our factory .plate heat exchanger gaskets are more and more importing in exporting business.
GHE is devoted to supply our customers heat exchanger gaskets and plates with high quality and competitive price cross reference well-known brands like .GEA,SONDEX,APV ,ETC
Our gaskets and plates are specified to fit most plate heat exchanger makers and models for replacement. With thousands model in stock, GHE can return to customers in short time.
Our plate heat exchanger replacement parts are applied widely in Marine, Gas & Oil, Power, HVAC, Food & Brewery, Paper & Pulp, Chemical etc. for heating & cooling.
Gasket Specification
Rubber Types
| Rubber | Code | Shore A hardness | Continue T℃ MIN |
Continue T℃ MAX |
Continue T℉ MIN |
Continue T℉ MAX |
| NBR Standard | 75±5 | -10 | 110 | 14 | 230 | |
| NBR Low Temperature | II | 80±5 | -20 | 110 | -4 | 230 |
| NBR High Temperature | I | 75±5 | -10 | 165 | 14 | 329 |
| HNBR | I | 75±5 | -10 | 165 | 14 | 329 |
| EPDM Standard | I | 80±5 | -15 | 150 | 5 | 302 |
| EPDM High Temperature | II | 80±5 | -15 | 165 | 5 | 329 |
| NBR Food | I | 80±5 | -10 | 110 | 14 | 230 |
| EPDM Food | II | 80±5 | -15 | 150 | 5 | 302 |
| VITON- A | I | 80±5 | -15 | 190 | 5 | 374 |
| VITON- G | II | 80±5 | -15 | 190 | 5 | 374 |
| NEOPREN/CR | I | 80±5 | -5 | 110 | 23 | 230 |

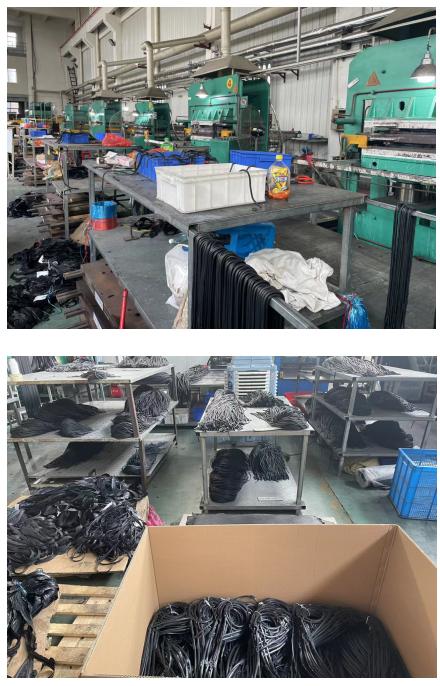

Factory Production
