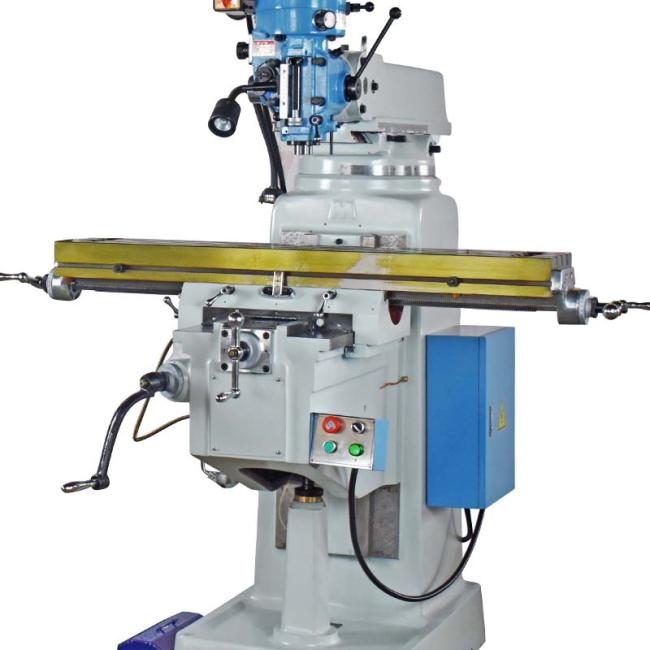

0.04 0.08 0.15 Quill Feed Feeds Turret Head Milling Machine For Metalworking
350mm Y Axis Manual Travel 0.04/0.08/0.15 Quill Feed Feeds Turret Head Milling Machine For Metalworking
Y-axis slide rail is parallel slide rail, and the bed platform is stable and can withstand heavy cutting.
The spindle gearbox adopts patented design, with small energy loss and strong horsepower.
| Item No. | WC-WL4BS | |
| Spindle speed | R.P.M | 75~4630(16) |
| Spindle taper | R8 or NT30 or NT40 | |
| Head tilt(right-left) | 45 degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
| X-axis manual travel | mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam trave | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| Machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ■ ▲ |
| Net weight (approx.) | kg | 1050 |
Company Information:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
If you are interested in any items, please feel free to contact us. Thank you!
