Industrial Turret Milling Machine 127mm Spindle Z Axis Manual Travel
350mm Z Axis Manual Travel 127mm Spindle Z-Axis Manual Travel Industrial Turret Milling Machine
The spindle is made of chrome-molybdenum steel, after heat treatment and precision grinding, it is rigid and tough, and can withstand heavy cutting.
The spindle gearbox adopts patented design, with small energy loss and strong horsepower.
| Item No. | WC-WL4BS | |
| Spindle speed | R.P.M | 75~4630(16) |
| Spindle taper | R8 or NT30 or NT40 | |
| Head tilt(right-left) | 45 degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
| X-axis manual travel | mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam trave | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| Machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ■ ▲ |
| Net weight (approx.) | kg | 1050 |
Standard Configuration:
Drive screw (Taiwan)
Electrical Box

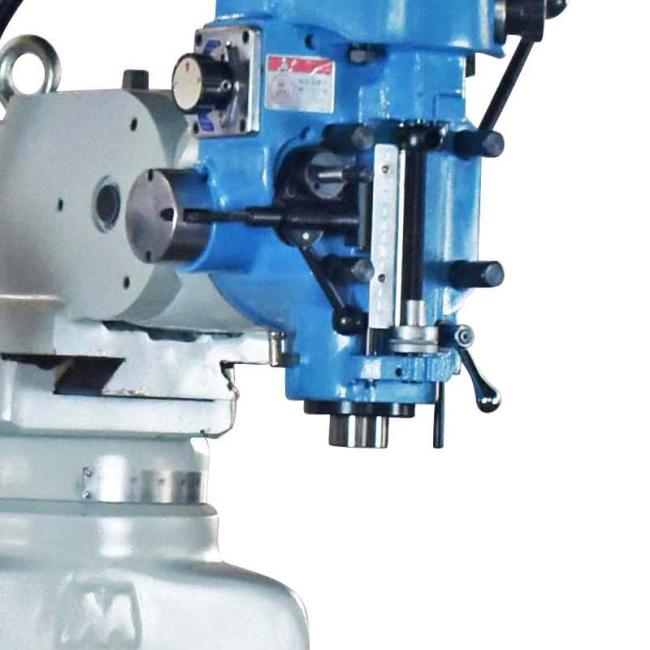

Powerful end mill head 16-segment speed change (A type belt vertical steel head)
Spindle tie rod
Spindle motor 380V-50HZ-3PH-2P/4P
Abrasion resistant plate (X,Y Axis)
Manual lubrication system
Heat treatment grinding (X,Y Axis)
Working lamp
Toolbox

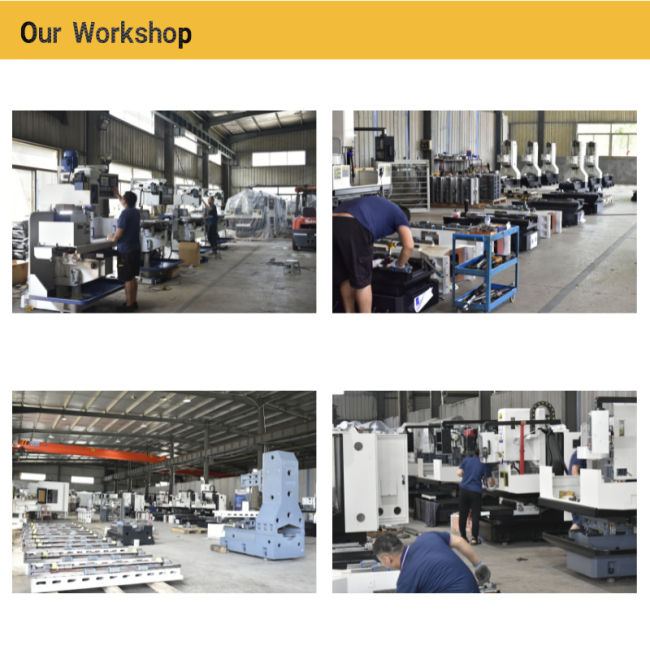

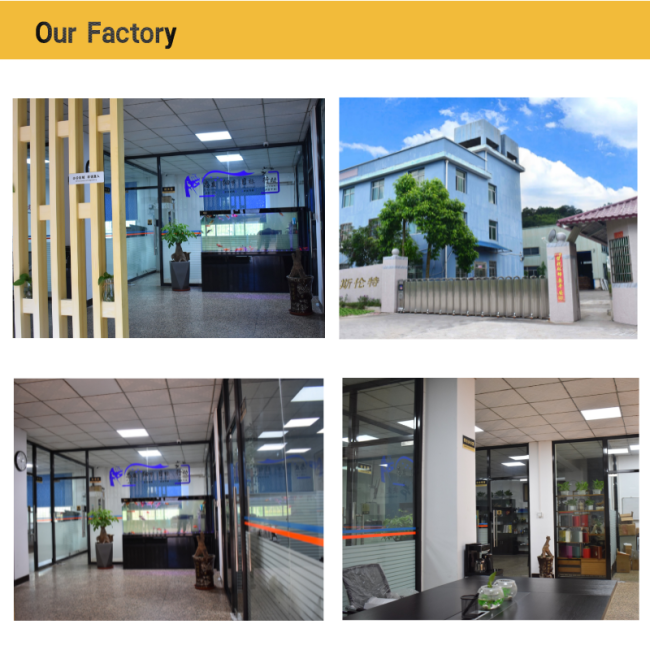

Company Information:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
If you are interested in any items, please feel free to contact us. Thank you!
