1270*254mm Table Turret Milling Machine Vertical 430mm Overam Travel
1270*254mm Table Length X Table Width Turret Vertical Milling Machine Vertical 430mm Overam Travel
The turret milling machine is considered a versatile unit, because it can create a wide array of shapes. It has a quill that can be raised or lowered to create different cutting depths. Turret milling machines are only effective if they are kept at a relatively small size, because the quill is difficult to operate with larger units.

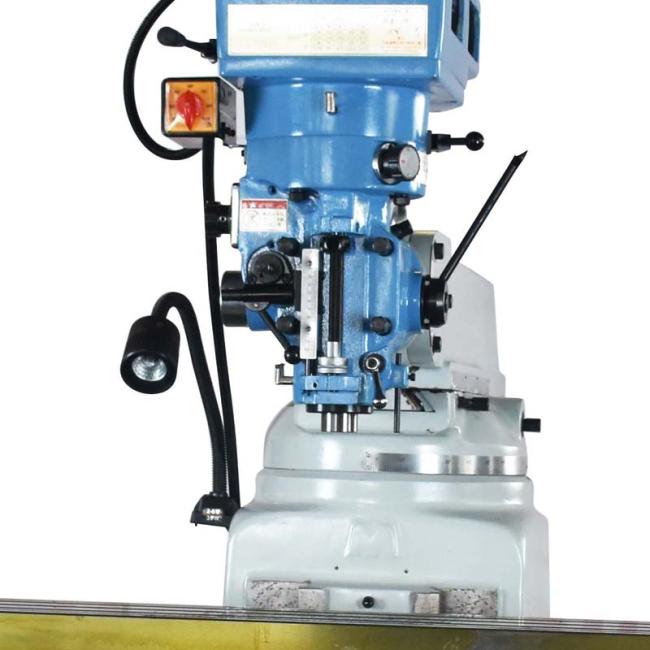

The lifting sleeve is chrome and precision ground, and matched with the precision grade main shaft to match the bearing. It has strong cutting ability and good precision.
Standard Configuration:
Drive screw (Taiwan)
Electrical Box
Powerful end mill head 16-segment speed change (A type belt vertical steel head)
Spindle tie rod
Spindle motor 380V-50HZ-3PH-2P/4P
Abrasion resistant plate (X,Y Axis)
Manual lubrication system
Heat treatment grinding (X,Y Axis)
Working lamp
Toolbox
| Item No. | WC-WL4BS | |
| Spindle speed | R.P.M | 75~4630(16) |
| Spindle taper | R8 or NT30 or NT40 | |
| Head tilt(right-left) | 45 degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
| X-axis manual travel | mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam trave | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| Machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ■ ▲ |
| Net weight (approx.) | kg | 1050 |
