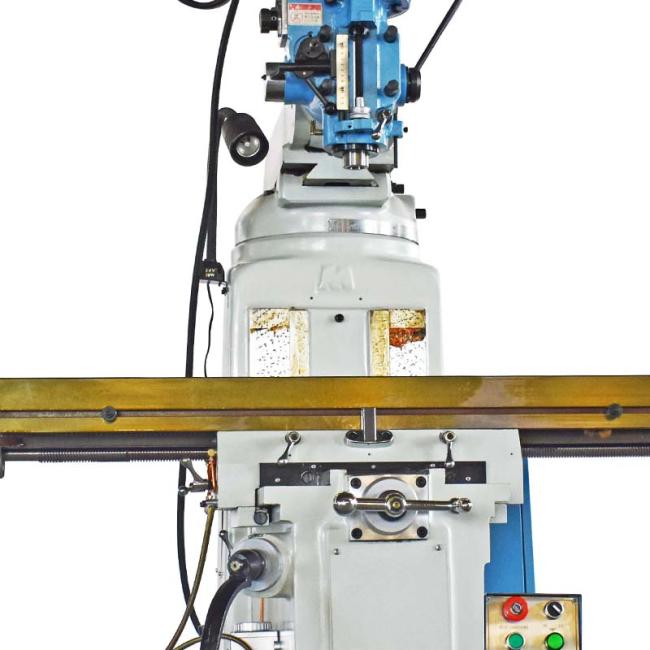

Vertical 3 Axis Turret Milling Machine For Metal Processing
3 Axis Turret Milling Machine For Metal Processing Vertical Turret Head Milling Machine
The spindle is made of chrome-molybdenum steel, after heat treatment and precision grinding, it is rigid and tough, and can withstand heavy cutting.
The lifting sleeve is chrome and precision ground, and matched with the precision grade main shaft to match the bearing. It has strong cutting ability and good precision.
| Item No. | WC-WL3BS | |
| Spindle speed | R.P.M |
75~4630(16) |
| Spindle taper |
R8 or NT30 orNT40 |
|
| Head tilt(right-left) | 45degree | |
| Table length x table width | mm | 1270*254 |
| Table load(Max.) | kg | 300 |
|
X-axis manual travel |
mm | 760 |
| Y-axis manual travel | mm | 350 |
| Z-axis manual travel | mm | 350 |
| Spindle nose to Table | mm | 75-460 |
| Overam travel | mm | 430 |
| Spindle Z-axis manual travel | mm | 127 |
| Quill feed feeds | mm/rev | 0.04/0.08/0.15 |
| machine size(LxWxH) | mm | 1750*1700*2100 |
| X.Y.Z.Guiding tracks | mm | ▲ ▲ ▲ |
|
net weight (approx.) |
kg | 1050 |
Application:
Because the machine tool is easy to operate and use, it is suitable for the maintenance and production of various enterprises, especially for tool, measuring tool and mold manufacturing enterprises.
Company Information:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
If you are interested in any items, please feel free to contact us. Thank you!
