Vertical High Speed VMC Machine Carousel / Side Mount Tool Changer
Carousel Tool Changer / Side-Mount Tool Changer High Speed CNC Vertical Machine Center
Product Description:

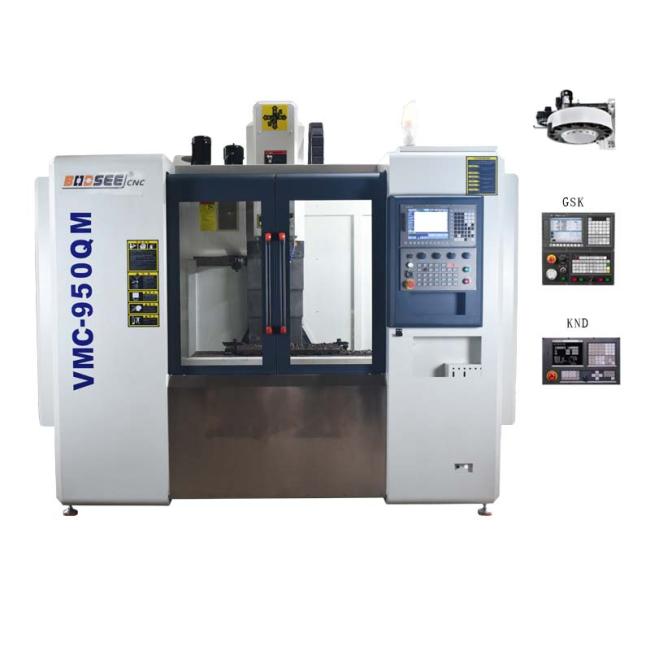

CNC-950QM Vertical Machining Center machine is a numerical control machine with superior cost performance and equipped with a numerical control system.It is suitable for processing parts with high accuracy and productivity requirements and reduces labor intensity. The machine is suitable for automobile, motorcycle, aerospace, military, instrument, meter, electronics, mold and other industries.
Product Specification:
| Model No. | CNC-950QM | |
| X axis travel | 900mm | |
| Y axis travel | 500mm | |
| Z axis travel | 500mm | |
| Distance from spindle nose to the work table | 120-620mm | |
| Distance from spindle center to column guideway | 580mm | |
| X rapid feed | 36m/min | |
| Y rapid feed | 36m/min | |
| Z rapid feed | 24m/min | |
| Cutting rapid feed | 8000mm/min | |
| The width of the triaxial linear guide | 35mm | |
| The number of the slider in the X axis | 6 pieces | |
| The number of the slider in the Y axis | 4 pieces | |
| The number of the slider in the Z axis | 4 pieces | |
| Triaxial screw size | 40/12mm | |
| Work table size | 1500x420mm | |
| The maximum load capacity | 400KG | |
| Table "T" type groove | The number of grooves | 4pieces |
| Width | 18mm | |
| Spacing | 90mm | |
| Positioning accuracy | 0.01mm | |
| Repeat positioning accuracy | 0.008mm | |
| Spindle speed range | 20-8000rpm/min | |
| Feed axis motor power | 1.8/1.8/2.5KW | |
| Feed motor connection form | Direct Connection | |
| Taper of spindle hole | BT40 | |
| The spindle of output power | 5.5/7.5KW | |
| Cooling box form | Independent | |
| Tool Changer | Carousel tool changer / Side-mount tool changer |
|
| Tool Capacity | 12-24pieces | |
| Dimension of machine tool | 2800*2200*2300mm | |
| Weight of machine | 3150KG | |
Product Features:
1. The machine bed, column, saddle, worktable, main spindle box and other main basic parts are made of high quality cast iron. It adopts special casting process to improve the mechanical properties of materials. After annealing treatment and vibration aging, remove stress to ensure good rigidity and damping characteristic when the machine tool is used for cutting. At the same time, it has good thermal stability and stabilization precision.
2. The spindle motor and pulley are tested by the dynamic balancing instrument to ensure smooth operation.
3. The X/Y/Z axis adopts the linear guide-way structure, and the three-way line rail adopts the heavy pre-pressing process. So that the machine tool not only has the characteristics of high speed and high precision, but also has the characteristics of heavy cutting, excellent rigidity and excellent production efficiency.
Our Company:
ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.
A: The delivery depends on different machines with different configurations. Please contact us to confirm if it is in stock or not.
