30 Ton Industrial Air Cooled Chiller Units For Plastic Extrusion Machinery Recirculating Water Chiller
Price:
Negotiation
MOQ:
1
Delivery Time:
20-30 days
Brand:
ANGES
Product Description

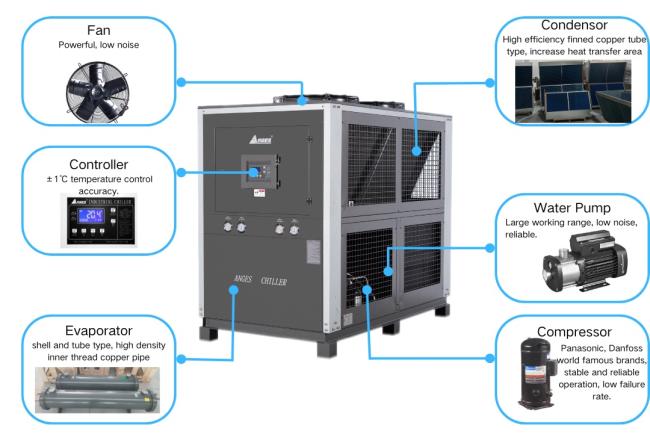

30 Ton Industrial Air Cooled Chiller Units For Plastic Extrusion Machinery Recirculating Water Chiller
Once a chiller is integrated with an extrusion machine, it operates by circulating cold water through the extrusion system. This chilled water efficiently removes heat from the extruded material as it exits the die. By rapidly cooling the material, the chiller ensures precise shaping and dimensional stability of the extruded product, enhancing overall production efficiency and quality.
Specification
|
Item Model |
ACK-30(D) | |
| Nominal cooling capacity |
Kcal/h | 79464 |
| kw | 92.4 | |
| Input power | kw | 28.96 |
| Power supply | 3PH 380V 50HZ | |
| Refrigerant |
Type | R22 |
| Type of control | Expansion valve | |
| Compressor |
Type | Hermetic scroll |
| Power(kw) | 24.92 | |
| Condenser |
Type | Finned copper tube + low noise outer rotor fan |
| Power(kw) | 1.84 | |
| Cooling air flow(m3/h) | 30000 | |
| Evaporator |
Type | Shell and tube |
| Chilled fluid flow(m3/h) | 15.93 | |
| Volume(L) | 220 | |
| Inlet/outlet pipe caliber(inch) | 2-1/2 | |
| Pump |
Power(kw) | 2.2 |
| Flow (m3/h) | 2.2 | |
| Lift(m) | 20 | |
| safety protection | compressor over temperature protection, over load protection, high and low pressure protection, flow switch protection, reversed and lacking phase protection, anti-freezing protection,fusible protection. | |
| Weight | kg | 1150 |
| Dimension | mm | 2000*1480*1890 |
Why choose the air-cooled chiller to cool the extrusion machine
- Easy Installation: No need for water sources, reducing installation and operational costs.
- Low Maintenance: No water quality issues, longer maintenance intervals.
- Versatile: Suitable for environments without water supply or where water quality is a concern.
- Energy Efficient: Provides good cooling performance in the right conditions, saving energy.
- Compact Design: Space-saving, ideal for areas with limited space.
THE AFTER-SALE SERVICE OF ANGES CHILLER!
- After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
- After the commissioning, we will package the equipment by standard export package for shipment.
- Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
