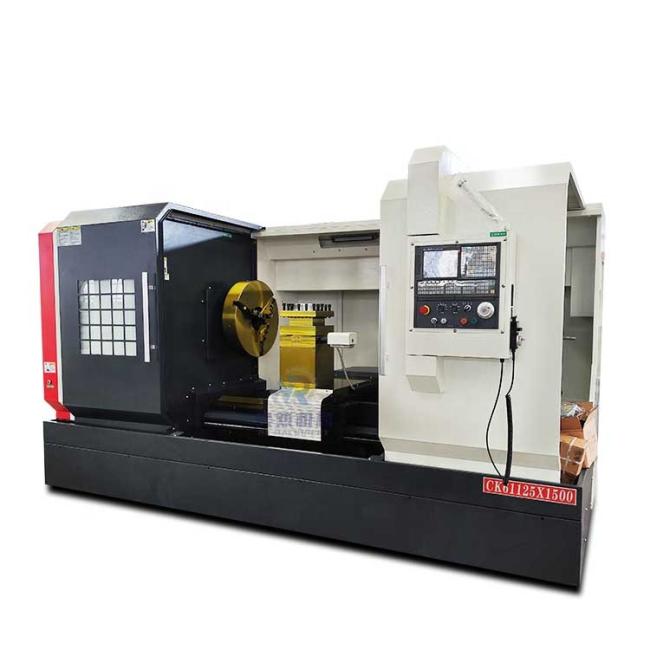

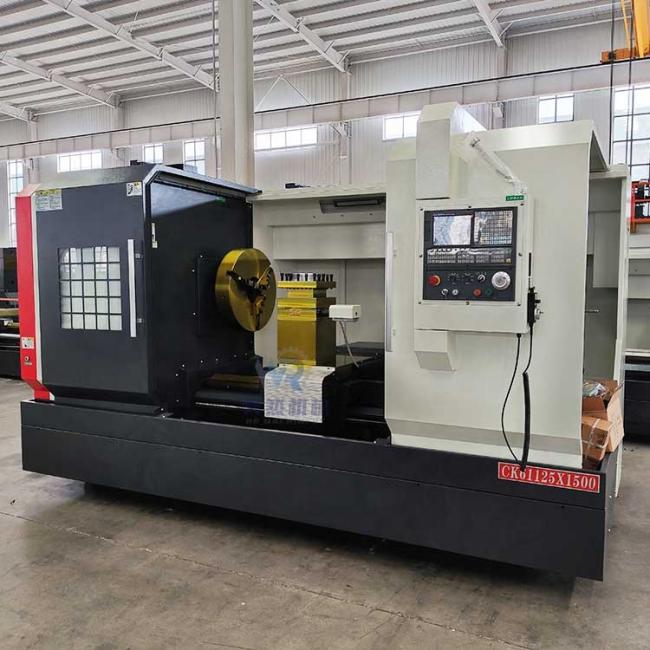

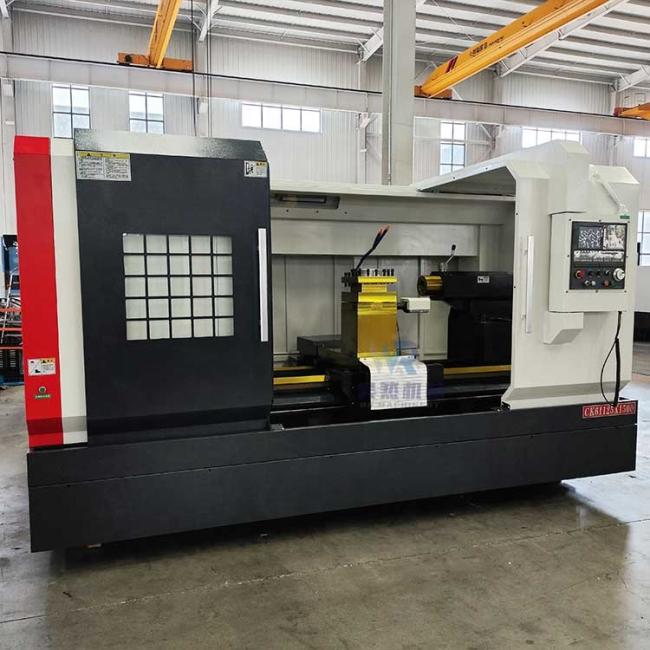

Ck61125 CNC Lathe Bed Width 755mm

Price Negotiable

Price: 20199-29999USD

MOQ: 1 SET

Delivery Time: 30 working days

Brand: HR

Product Description

CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.

Left Elevation

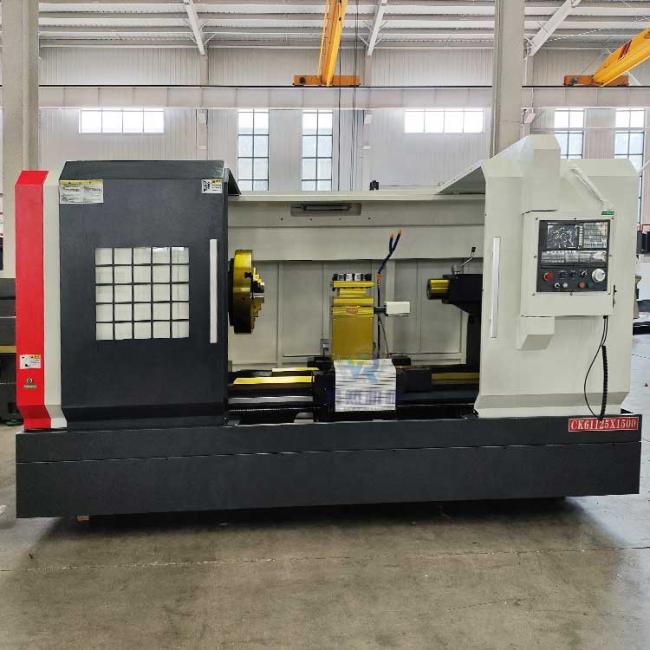

Front Elevation

Right Elevation

CNC Lathe Features

1. A high strength, widening the crriage, suitablefor heavy cutting

2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

type	Parameter
Max. swing over bed	Φ1250mm
Max. swing dia. over cross slide	Ф900mm
Max turning diameter	Φ1250mm
Processing length	1000-5000mm
Effective processing length	850/1350/2850/3800/4800
X/Z axis max. stroke	530/1000-5000
X/Z axis min.displacement unit	0.001
Diameter of spindle bore	Ф105mm
Form	Four gears No gearshift
Spindle speed	30-84/53-150/125-350/300-835
Main motor power(frequency conversion)	11KW
Frequency converter	15KW
X/Z axis torque	10/15 N.m
X/Z axis Cutting feed rate	4/6 m/min
type	4 station electric tool post
Section of tool shank	40*40
Repetitive position precision	≤0.004
Dia.of tailstock sleeve	Φ75mm
Travel of tailstock sleeve	200mm
Sleeve taper	MT 6#
Net weight	4500/5000/5500/6000/6500/7000kg
Dimension size(L×W×H)	2800/3700/4200/5200/6200/720018201780
Power demand (power/current)	20kW/30A
