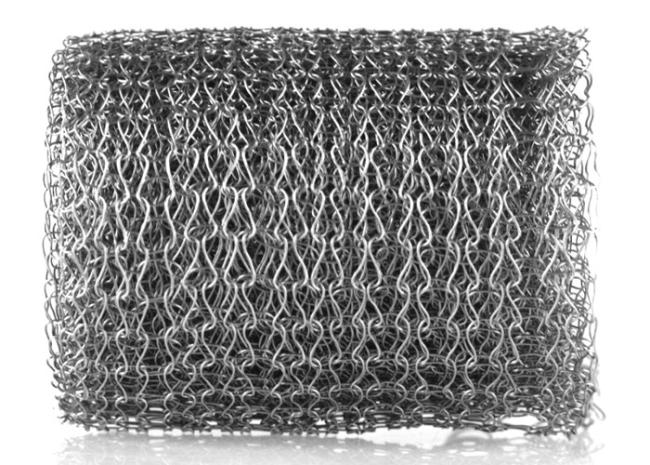

Metal Knitted Wire Mesh Co Knit Stainless Steel 316L And PTFE Fiber
High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber
High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber
Description| Material: | 316L + PTFE Fiber | Width: | Specified By Client |
|---|---|---|---|
| Treatment: | Corrugation Or None | Weaving Style: | Co-knit Of Metal And Fiber |
| Feature: | Corrosion Resistant | Specific Area: | 4000-5000 M2/m3 |
| High Light: |
stainless steel knitted wire mesh,demister pad |
||
High Surface Area Co Knit Of Stainless Steel 316L And PTFE Fiber
Materials of construction are a key consideration for maximizing the service life of the kitted wire mesh used in making mist eliminator. We provide custom manufactured knitted wire mesh specified by the client. Typical stainless steel, polypropylene mesh are maintained in inventory. Other alloy steels and polymeric materials are available by special order. Extremely high surface area units by co-knitting of stainless steel and multifilament glass fiber or PTFE fiber are available by special order. We are able to provide technical input for material selection to the customers.
Material of knitted wire mesh and its application:
| Materials | Main Application Area |
| SS304 | Water solutions, Nitric acid reduced crude petroleum fraction etc. |
| SS316L | Fatty acid reduced crude containing naphthenic acids and corrosive chemicals |
| Synthetic fiber | For corrosive service at moderate temperature |
| PP(Polypropylene) | For corrosive service at temperature up to 70℃ |
| PTFE | For corrosive service at temperature of (-190℃, 250℃) |
| Monel | Caustic soda, dilute acid |
| Nickel | Caustic Soda, food products |
| Copper | Freon, alcohol |
| Aluminium | Nitric Acid |
Yuanqiao knitted wire mesh may be made from most metals and plastics i.e. SS304, 304L, 316, 316L, 321, 310S, 201, Duplex 2205, 316Ti, 904L, Monel, Nickel, Alloy 20, Copper, P.T.F.E., H.D.P.E., P.P., co-knit of 316L + PTFE, alloy 20 + PTFE, 304+PTFE, 904L + PTFE, 304+glass fiber, 316L + glass fiber, 904L + glass fiber, 316L+PP etc. and other metals, alloys or plastic which can be drawn or extruded.
Knitted Wire Mesh applications include:
Cable wrap
Exhaust seals
Lint traps-alum
Flame arrestors
Ground wire mesh
Oil-bath separators
Copper gauze mesh
Diesel injector filters
Mist elimination pads
Heat exchange media
Insulation blanket mesh
Metal & plastic sponges
Catalytic converter mesh
Oil & air breather elements
Mufflers and silencers, pneumatic tools
Separators for liquid vapor used in chemical and petro-chemical plants
