China 304 316 Corrosion Resistance Knitted Wire Mesh For Vapour Liquid Filtering for sale

304 316 Corrosion Resistance Knitted Wire Mesh For Vapour Liquid Filtering

Price Negotiable

Price: negotiation

MOQ: 50kg

Delivery Time: 7-20 days

Brand: JIUFU

Product Description

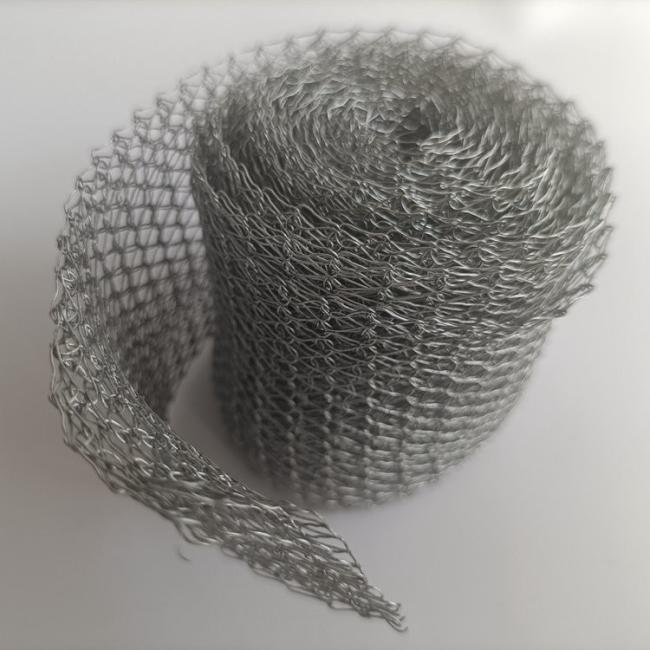

304 316 Corrosion Resistance Knitted Wire Mesh For Vapour Liquid Filtering

Stainless steel knitted wire mesh for demister pad Introduction:

gas-liguid Separator, also known as the mist, a special form of woven wire mesh, it is a major component of the production of screen, other than demister, oil-gas separator, dust, environmental protection, engine silencers, mechanical damping.

Stainless steel knitted wire mesh for demister pad Specifications:

Product Name	Stainless Steel Knitted Wire Mesh
Material	stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L,;other galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire.
Wire Diameter	0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Width	40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
Hole Size	4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Application	It mainly used for processing demister, for separating gases inside the droplet, also be extrusion molding, for manufacturing a filtration device, in the automotive industry, the electronics industry has also been widely used.

Recommendations:

Below is a list of our recommendations based on various knitted wire mesh needs.
* For maximum strength and temperature, we recommend the 0.0095” and 0.011” wire diameters.
* For applications that are either sewn or require less frequent replacement, we recommend the 0.008” wire diameter.
* For maximum flexibility, we recommend the 0.006” wire diameter.
* For extremely high temperature applications, we recommend the crimped mesh. Although it is reduced in coverage, the crimped mesh allows for a slight air gap in extremely high temperature applications as well as counteracts the tendency of the material to toll back when cut.
* For exhaust applications, we recommend versions 309 and 310 in Stainless Steel.
