Dutch Weave Stainless Steel Woven Mesh Introduction
Dutch Weave Stainless Steel Woven Mesh, warp wire and weft wire have different wire diameters and different mesh numbers. The length direction is the warp wire, the width direction is the weft wire.
The characteristics are: the warp is sparse and the weft is dense, and the warp is thick and the weft is thin.
Dutch Weave Stainless Steel Wove Mesh Classify

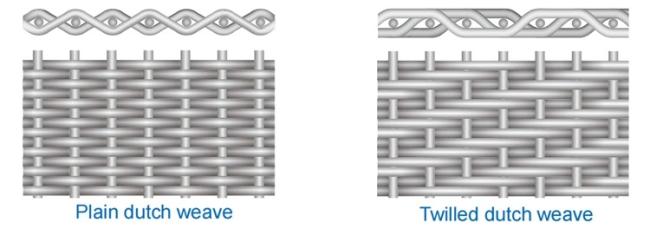

It is divided into Plain Weave Dutch Wire Mesh and Twilled Weave Dutch Wire Mesh.

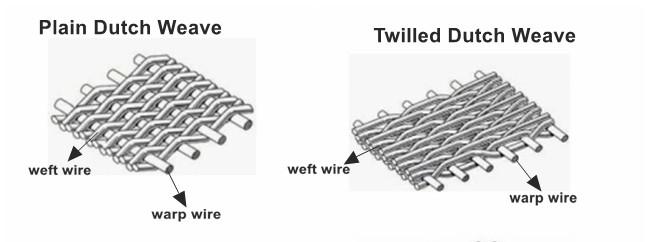

Plain Weave Dutch Wire Mesh: Each warp wire crosses over and over each weft wire.
Twilled Weave Dutch Wire Mesh: Each warp wire crosses above and below every two weft wire, and each weft wire crosses above and below every two warp wire
Dutch Weave Stainless Steel Woven Mesh Parameter
|
Product Name
|
Dutch Wire Mesh
|
|
Material
|
Stainless steel wire, Nickel wire, Black iron wire, Copper wire, etc
|
|
Wire Diameter
|
0.018-0.6mm
|
|
Weave Type
|
Plain Dutch Weave; Twilled Dutch Weave
|
|
Width
|
1m-1.6m
|
|
Feature
|
Stable and Fine Filtration Performance
|
|
|
Used for precision pressure filter, fuel filter, vacuum filter, also suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
|
|
Common Specifications
|
12 x 64 mesh * 0.58mm x 0.40mm * 280um
24 x 110 mesh * 0.355mm x 0.25mm * 120um 30 x 150 mesh * 0.25mm x 0.18mm * 80um 45 x 250 mesh * 0.16mm x 0.112mm * 56um 70 x 350 mesh * 0.11mm x 0.08mm * 35um 127 x 1100 mesh * 0.07mm x 0.05mm * 17um 165 x 1400 mesh * 0.071mm x 0.04mm * 16um 200 x 1400 mesh * 0.071mm x 0.04mm * 12um 254 x 2000 mesh * 0.04mm x 0.028mm * 8um 325 x 2300 mesh * 0.035mm x 0.025mm * 5um 400 x 3100 mesh * 0.035mm x 0.019mm * 3um |
