ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh
ISO 8-25 Micron Stainless Steel Screen 316l Stainless Steel Wire Mesh

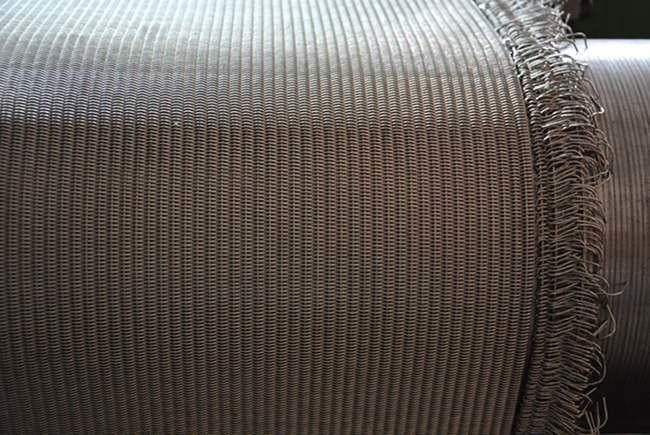

Dutch Weave Stainless Steel Woven Mesh has four types of weaves, which has plain dutch woven, twill dutch woven, reverse dutch woven and five heddle weave.
Dutch Weave Wire Mesh can be weaved by stainless steel wire, nickel wire, brass wire and galvanized wire.
Stainless Steel Twill Dutch Weave Wire Mesh Specification
| Twill Weave Dutch Wire Mesh | ||||
| Filter Number |
Mesh Count (warp*weft) |
Wire Diameter (warp*weft) |
Hole Size (um) |
Weight (kg/m2) |
| 360# | 91 x 787 | 0.10mm x 0.07 | 25 | 1.24 |
| 400# | 101 x 900 | 0.10mm x 0.063 | 20 | 1.22 |
| 472# | 120 x 400 | 0.10mm x 0.075 | — | — |
| 500# | 127 x 1100 | 0.07mm x 0.05 | 17 | 0.81 |
| 630# | 160 x 1500 | 0.063mm x 0.04 | 15 | 0.62 |
| 650# (1) | 165 x 400 | 0.071 mm x 0.06 | — | — |
| 650# (2) | 165 x 600 | 0.071mm x 0.05 | — | — |
| 650# (3) | 165 x 800 | 0.071 mm x 0.05 | 25 | — |
| 650# (4) | 165 x 1100 | 0.071 mm x 0.045 | — | — |
| 650# (5) | 165 x 1400 | 0.071mm x 0.04 | 16 | 0.76 |
| 685# | 174 x 1700 | 0.063mm x 0.032 | 13 | 0.61 |
| 787#(1) | 200 x 600 | 0.071mm x 0.06 | — | — |
| 787# (2) | 200 x 800 | 0.071mm x 0.06 | — | — |
| 787# (3) | 200 x 1400 | 0.071mm x 0.04 | 12 | 0.8 |
| 795# | 202 x 1760 | 0.05mm x 0.032 | 10 | 0.6 |
| 850# | 216 x 1860 | 0.045mm x 0.030 | 9 | — |
| 1000# | 254 x 2000 | 0.04mm x 0.028 | 8 | 0.5 |
| 1125# | 285 x 2235 | 0.036mm x 0.025 | 7 | — |
| 1228# | 312 x 2100 | 0.035mm x 0.025 | — | — |
| 1250# | 318 x 2235 | 0.036mm x 0.025 | — | — |
| 1280# | 325 x 2300 | 0.035mm x 0.025 | 5 | 0.45 |
| 1575# | 400 x 3100 | 0.035mm x 0.019 | 3 | — |
| Width: 1-1.6m | ||||
