0.5mm-2mm Galvanized Crimped Wire Mesh Stainless Steel Bbq Grill Mesh
0.5mm-2mm Galvanized Crimped Wire Mesh Stainless Steel Bbq Grill Mesh
Crimped Wire Mesh Material
Iron wire, black steel wire, galvanized wire, galvanized redrawn wire, stainless steel wire
Galvanized Wire and Redrawing Wire Introduction
Galvanized wire is made of high-quality low-carbon steel wire rod through drawing, pickling and rust removal, high temperature annealing, hot-dip galvanizing (or electro-galvanizing), cooling and other processes.
Uses: The products are widely used in various fields such as wire mesh weaving, building binding, handicraft production, highway guardrails, product packaging and daily civil use.
Galvanized drawing wire is made of hot-dip galvanized or electro-galvanized iron wire, the surface is smooth and bright, and its tensile strength becomes stronger. It is mainly used for making hangers, formulating, construction, medical treatment, communication, weaving nets, brush making, high pressure pipes, binding wires, handicrafts and so on.
Galvanized Wire and Redrawing Wire Production Process
The general production process of galvanized wire is: wire rod -- large drawing -- annealing -- medium drawing -- annealing -- galvanizing.
The production process of redrawing wire is: wire rod -- large drawing -- annealing -- galvanizing -- middle drawing.
It can be seen that the redrawing wire has one less annealing process in the production process, so the redrawing wire is harder, and its corrosion resistance is not as good as that of galvanized wire, but the price is lower than that of galvanized wire.
Crimped Wire Mesh Specification
| wire number | wire diameter | mesh count | hole size | weight |
| 14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |

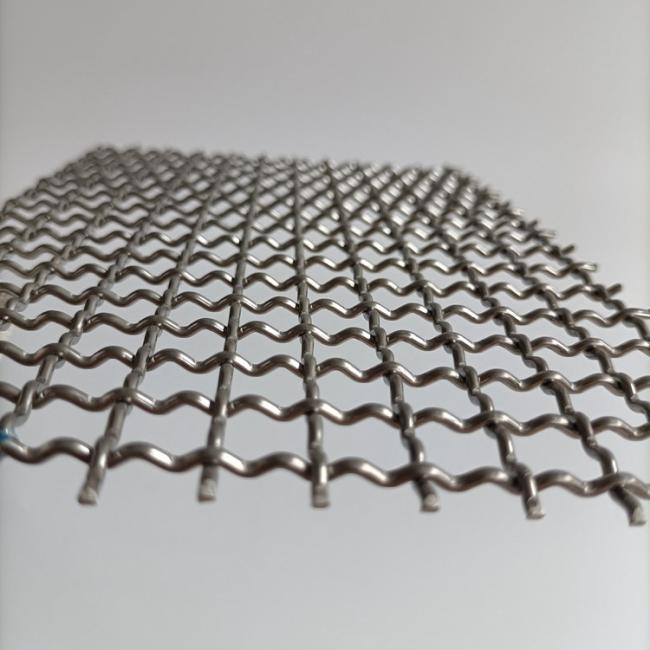

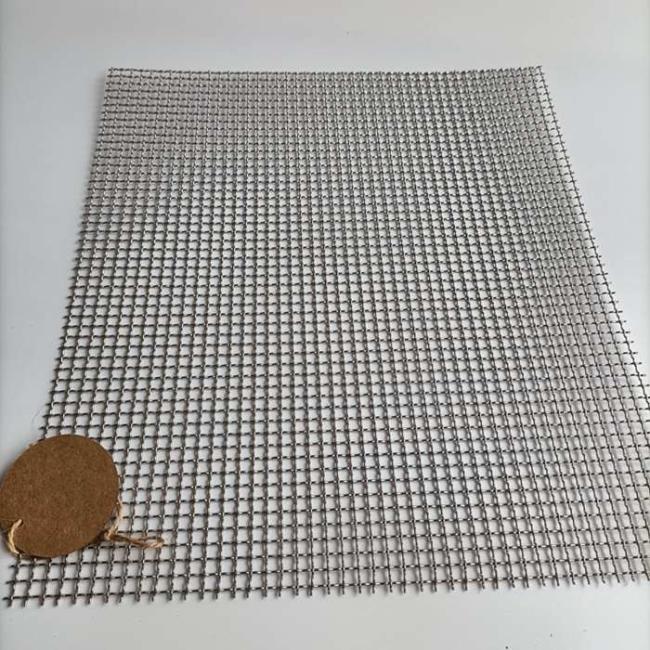

Crimped Wire Mesh Pictures
