Battery Used Ni4 Ni6 Pure Nickel Wire Mesh Stainless Steel Netting Mesh

Battery Used Ni4 Ni6 Pure Nickel Wire Mesh Stainless Steel Netting Mesh

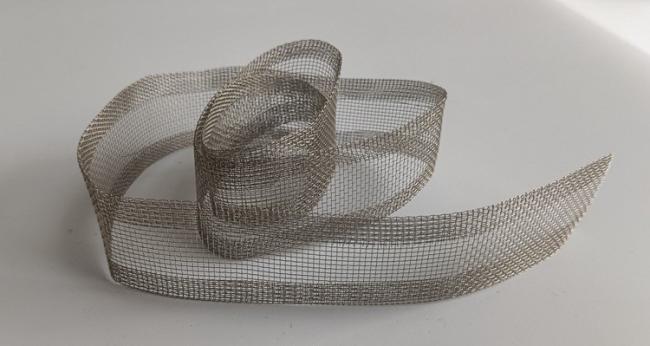

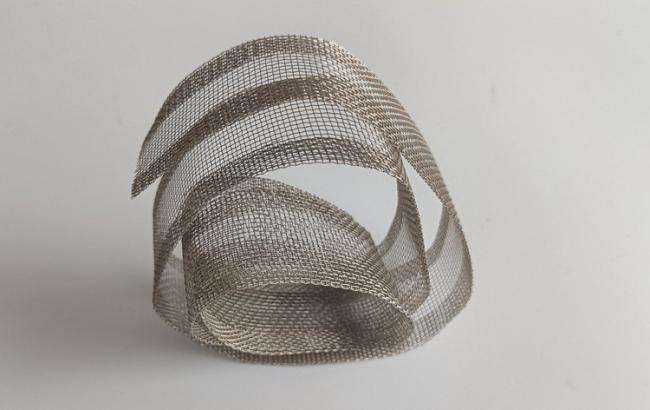

Nickel Wire Stainless Steel Woven Mesh Introduction

Nickel wire mesh is a filter mesh woven from nickel wire. The main common nickel wires are Ni4 and Ni6. Ni6 material mainly contains more than 99.5% nickel. The nickel wire mesh applied to Ni4 material can be completely made of Ni6 material nickel wire instead.

Nickel wire mesh characteristics: Nickel wire mesh has good performance in corrosion resistance, electrical conductivity, shielding, etc. It is mainly used for battery electrodes, current collectors, radiation shielding, and special gas and liquid filtration.

Pure nickel filters are mainly used in petroleum, chemical, aerospace and other industries.

Nickel Wire Stainless Steel Woven Mesh Weaving type

The main weaving techniques of nickel wire mesh are plain weave, twill weave and dutch weave.

The main specification of plain weave is 1 mesh to 200 mesh. The weaving characteristic of plain weave technology is that the density of warp and weft per inch is the same.

The main specification of twill weave is 1 mesh to 220 mesh. The tension of twill weave is better than that of plain weave.

The main specification of dutch weave is 45 mesh to 800 mesh, and the filtering accuracy can reach 20um at least. Unachievable filtering precision.

Nickel Wire Mesh Parameter
